SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency

  • Highlight

    SAE 180CBM/H Concrete Boom Truck

    ,

    180CBM/H Concrete Boom Truck

    ,

    180CBM/H truck mounted concrete boom pump

  • Engine Type
    Diesel
  • Boom Length
    52meter
  • Boom Section
    6
  • Power
    300KW
  • Max Concrete Output
    180 CBM PER HOUR
  • Concrete Pressure
    9Mpa
  • Max.Hydraulic Pressure
    360Bar
  • Chassis Model
    Actros 4141
  • Total Weight
    40900KG
  • Dimensions(L*W*H)
    13670*2500*4000mm
  • Place of Origin
    China
  • Brand Name
    Zoomlion
  • Certification
    ISO90001.SAE
  • Model Number
    ZLJ5419THB
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    RORO ship, Cargo bulk ship
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    10 units per month

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency

Zoomlion 52M Diesel Used Concrete Pump Truck Mounted Concrete Boom Pumping Truck



* Large diameter slide valve with casting oil passage
* Intelligent electrical control system
* Remote / Manual control method for boom and pumping unit
* Centralized lubrication system for pumping unit
* Piston automatic return technology, easy to replace piston
* Main hydraulic pump overload protection technology
* Engine overload protection technology
* Engine low-speed protection technology
* Anti-tipping safety protection technology
* Lights system



SPECIFICATION
Chassis
Chassis brand
Mercedes Benz
Driving Type
Left Hand Driving
Chassis model
ZLJ5419THB
Overall dimensions (L´W´H)
13670*2500*4000mm
Overall weight
40900KG
Axle numbers
4
Emission standard
Euro 3
Pumping unit technical data
Theoretical output (rod/piston side)( m3/h)
180
Delivery pressure (rod/piston side)( MPa)
9Mpa
Hydraulic circuit
Open
Transfer tube
S tube
Placing boom technical data
Max. vertical reach(m)
52
Max. horizontal distance (from center of slewing axis) (m)
48
Section numbers
6

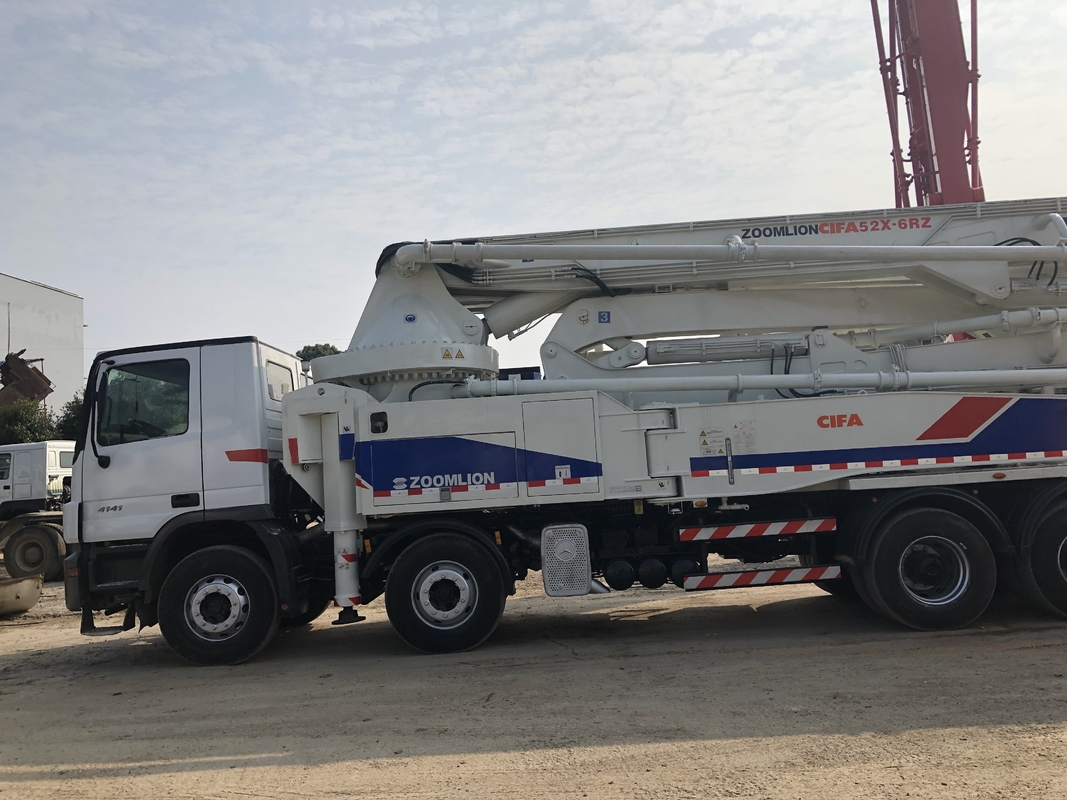

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency 0

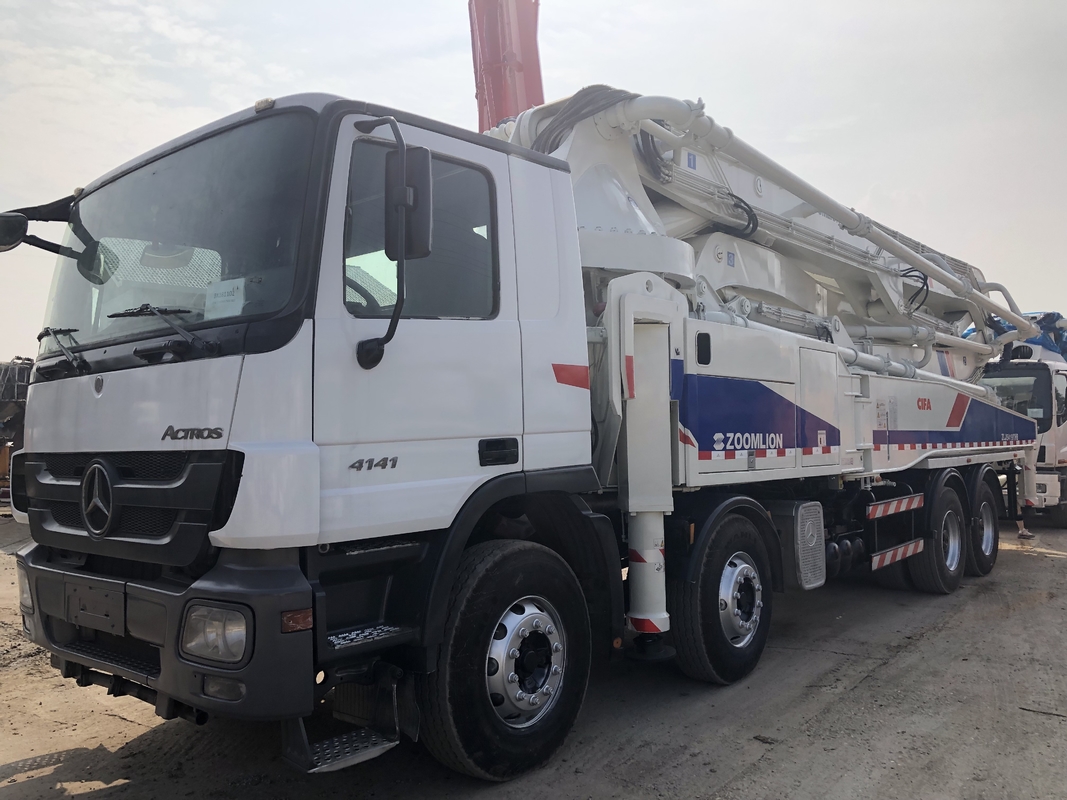

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency 1

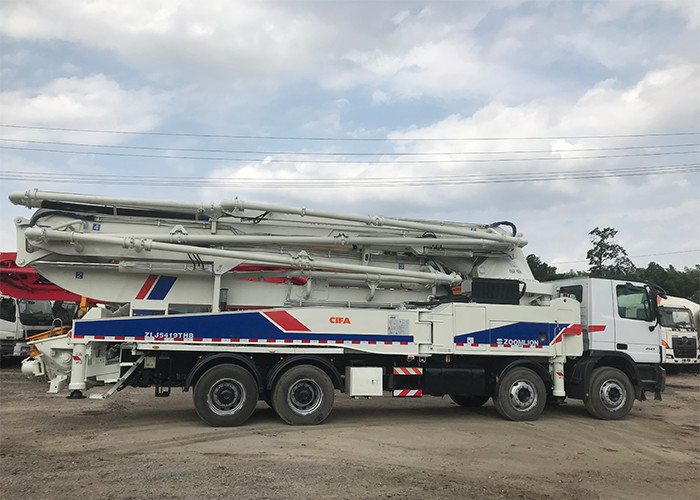

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency 2

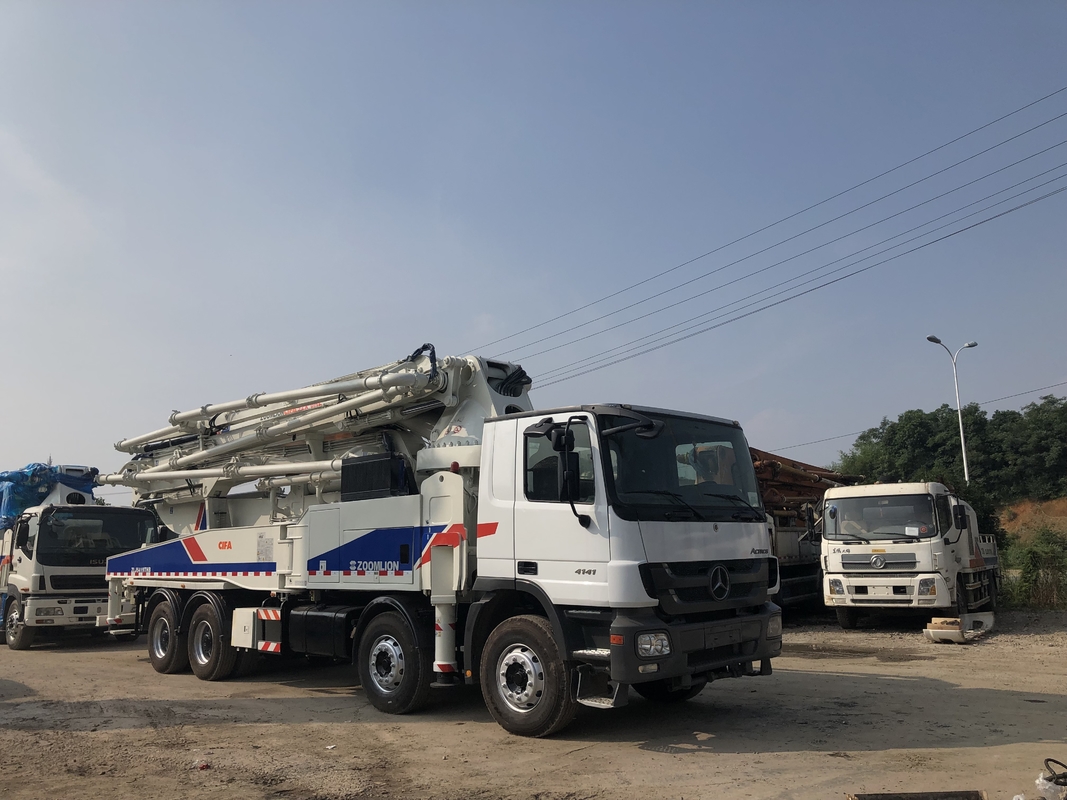

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency 3

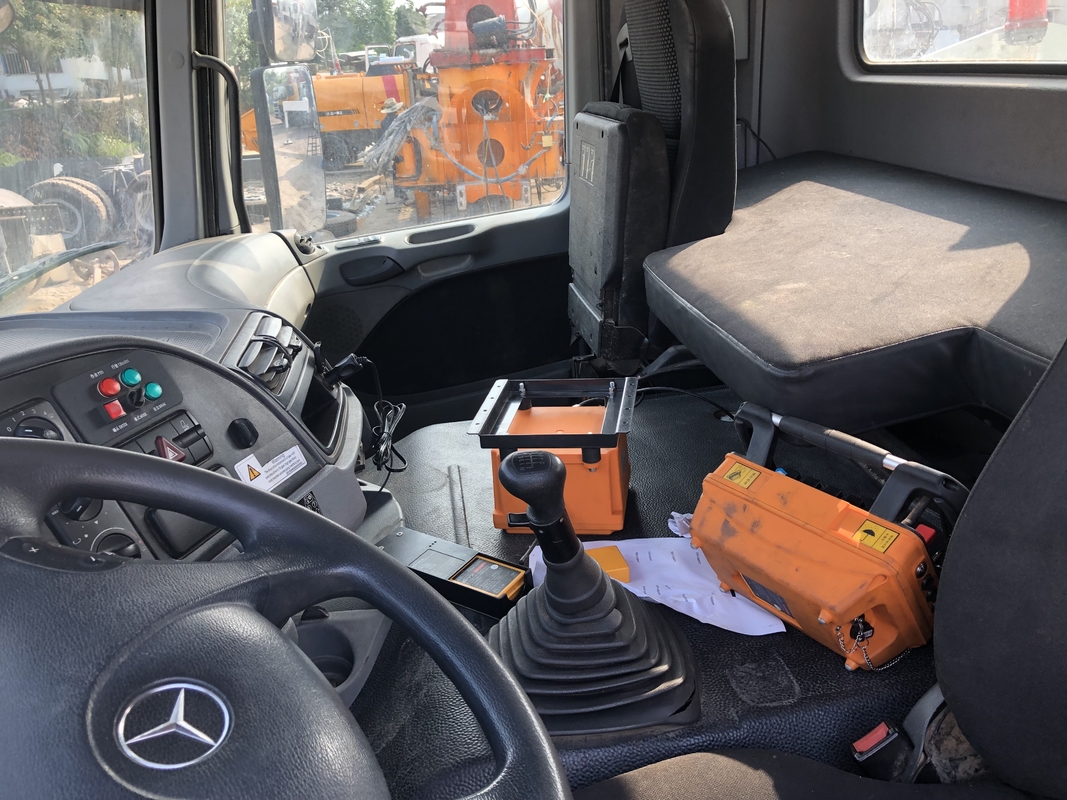

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency 4

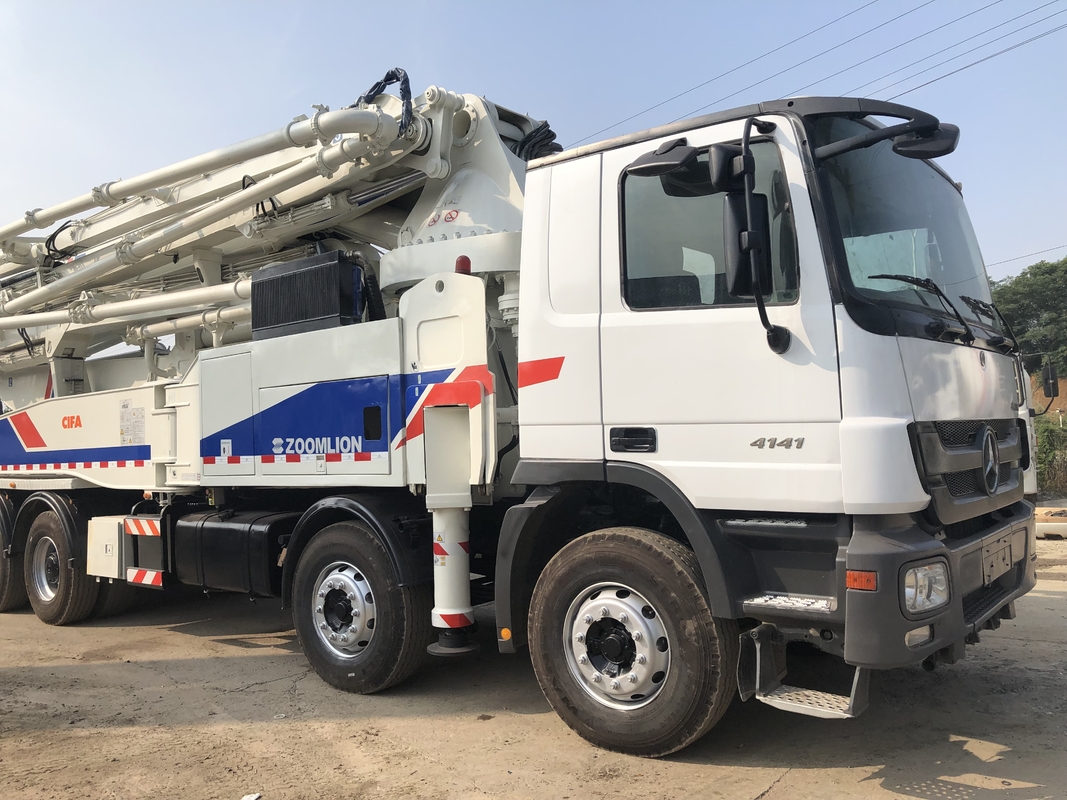

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency 5

Packaging Details:



             Comply with export packaging requirements

1. Concrete mixer pump, trailer concrete pump etc small machinery in container. Spare parts wooden or steel box.

2. Concrete pump truck and concrete mixer truck etc equipment will be shipped by RORO ship,Bulk cargo ship or Flat rack.

SAE Certified 180CBM/H Concrete Boom Truck Diesel Power High Efficiency 6





1. What is your payment term?

We can receive T/T, L/C, D/P, Western Union and so on.



2. I am interested in your products, can you introduce them to me?

Please directly sent inquiry either leaving message or consulting online on website, and confirm us your correct email, so that our sales can show you more detailed information on products.



3. OEM or ODM is available?

Yes, we can produce with your logo.



4. Trade term and logistic ways you will adopt?

We normally adopt FOB, CFR, CIF, CIP, CAP, in INCOTERMS 2010 terms. And we adopt various Logistic ways such as container/Ro-Ro/bulk ship by sea, by road and by train.
