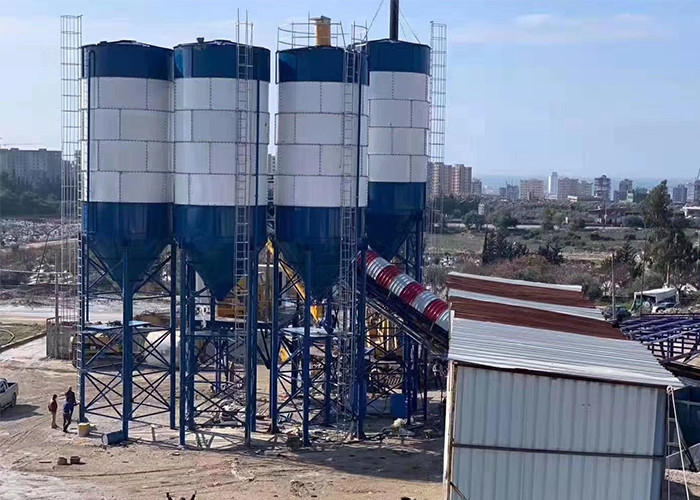

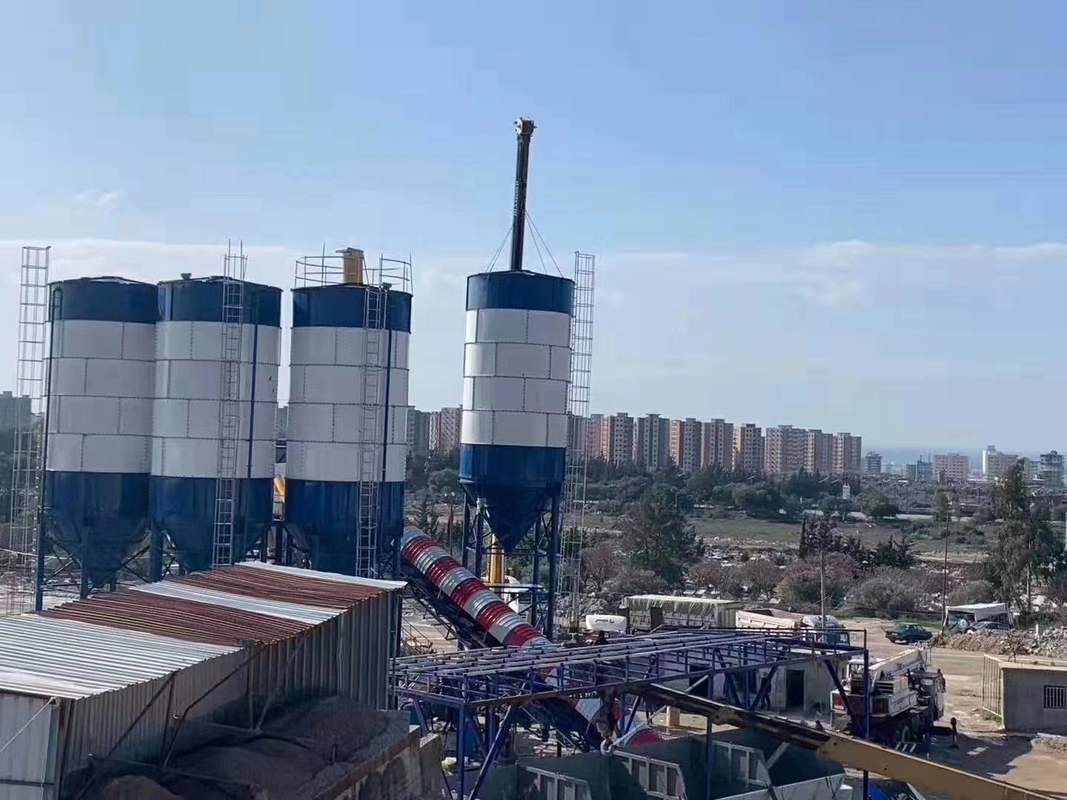

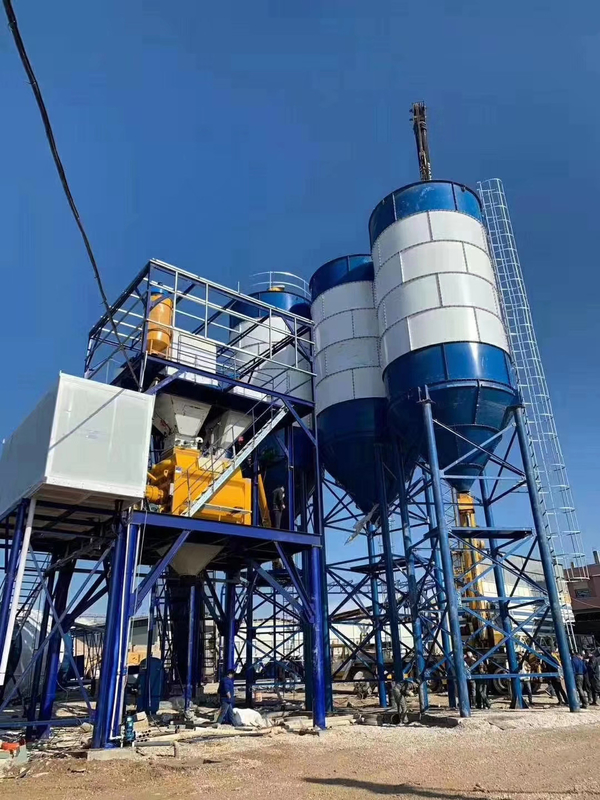

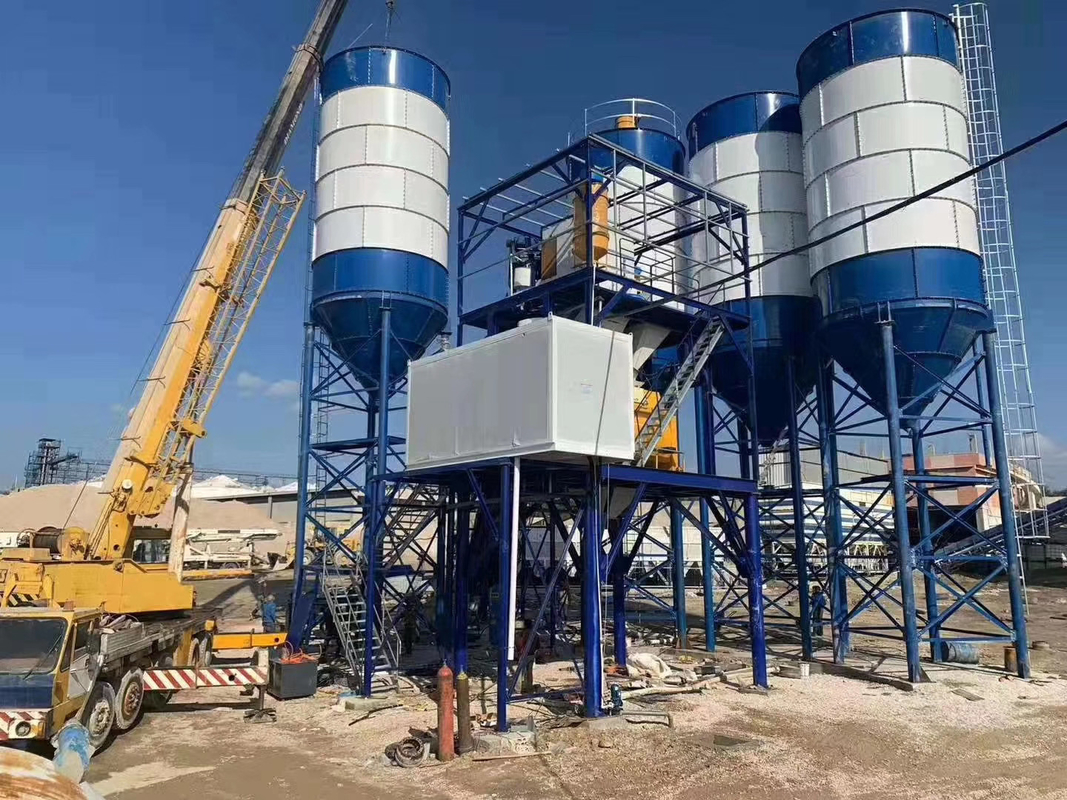

Concrete Batching Plant
Stationary type (HZS series)
HZS series stationary concrete baching plant is widely used in big or medium building projects, road and bridages projects, precast concrete plants,etc. It is an ideal choice for producing commercial commercial concrete. It has two feeding methods. One is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is usually used for higher than 60m3 per hour output production. For export, we adopt full automatic control system for our stationary concrete mixing plant, It is industrial computer control, which can vividly display the production process on the screen, so that the operator can monitor at real time.
| Description | |||
| Type | HZS180 | Theoretical Production | 180m3/h |
| Installed Capacity | 300KW | Discharging Height | 4m |
| Mixer | Weighing Accuracy | ||
| Type | JS3000 | Aggregate | (600-3000)± 2% kg |
| Power | 2X30kw | Cement | (200-900)± 1% kg |
| Discharging Capacity | 1 m³ | Fly Ash | (150-600)± 1% kg |
| Aggregate Diameter | ≤80mm | Water | (150-400)± 1% kg |
| Aggregate Bin | 3*22m3 | Additives | (10-30)± 1% |
| Belt Conveying Capacity | 180t/h | ||
Our concrete batching plant features:
1. It uses forced double-horizontal shafts and can produce many kinds of high-quality concrete, such as dry hard concrete and plastic concrete and others.
2. Separate metering methods is used to measure aggregate through an electronic weighing apparatus.
3. A weighing hopper is used to weigh cement, water and additives, to ensure that the measurement is accurate.
4. our machine key parts such as motor, reducer, bearing, double shaft mixer uses famous domestic and international brands:
5. PLC are adopted in our concrete mixing plant to ensure the reliable performance and high production efficiency.
Q1: Are you trading company or manufacturer?
A1: We are factory.
Q2: Is the Belt conveyor necessary ?
A2: Small capacity (Below 60m3/h) normally use Skip Hopper to feed aggregate, no need to use belt conveyor. While for large capacity, (Larger than 60m3h), normally use Delivery belt to raise efficiency. Q3: What’s the lifetime of your machinery? Usually 10 years under good maintenance.
Our products are sold all over the world, you can rest assured.
