PRODUCT DESCRIPTION

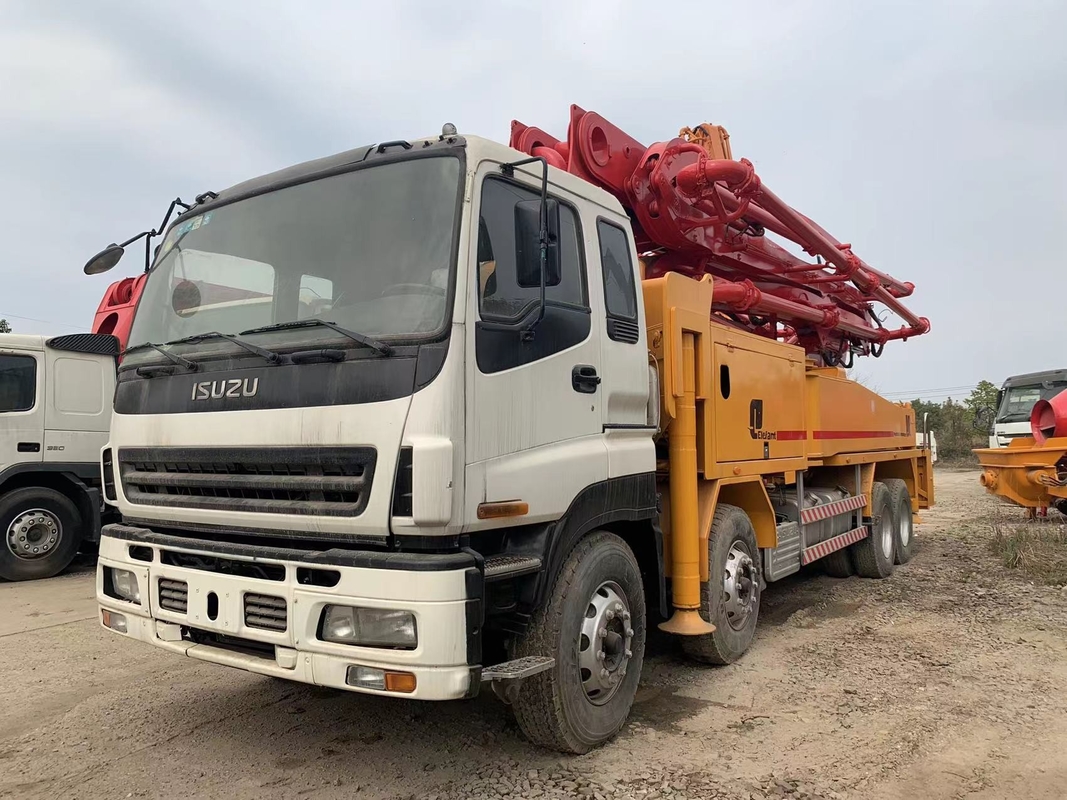

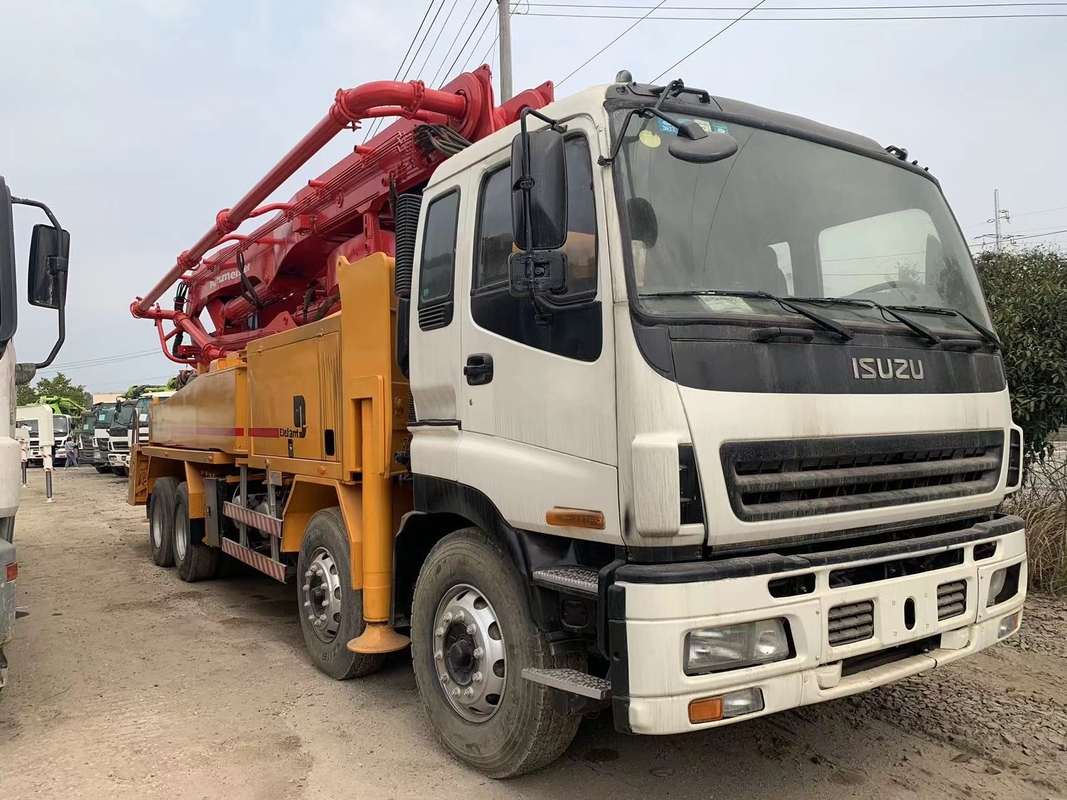

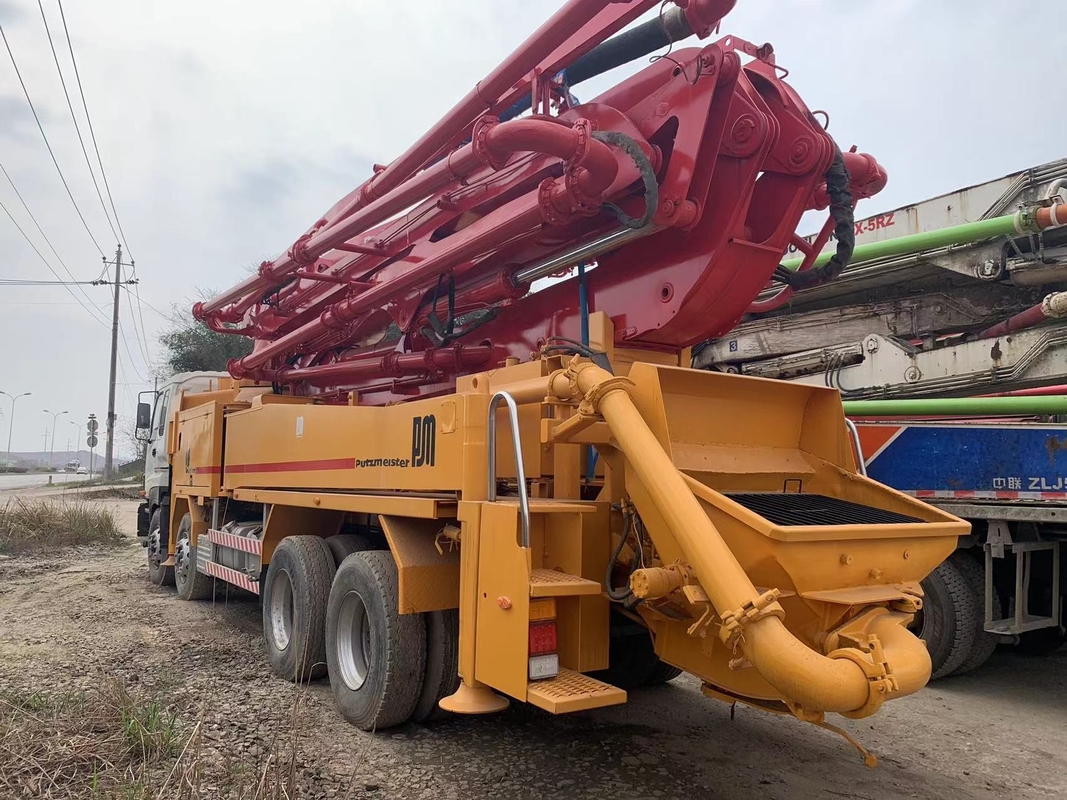

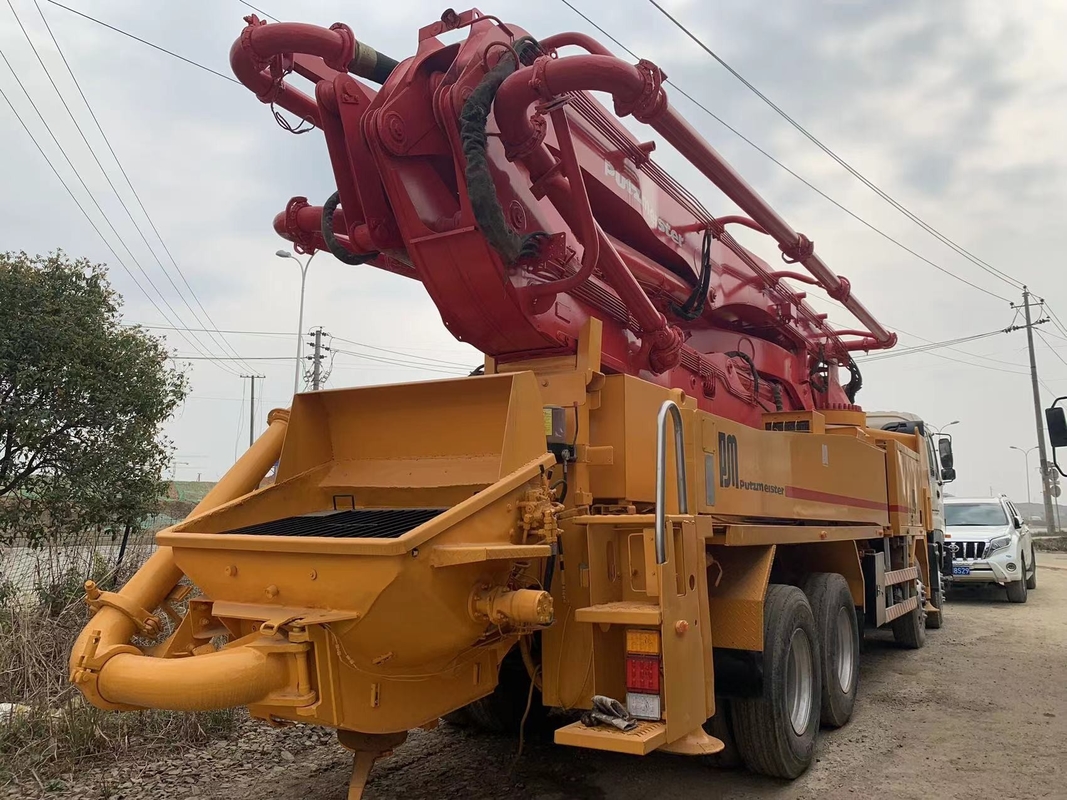

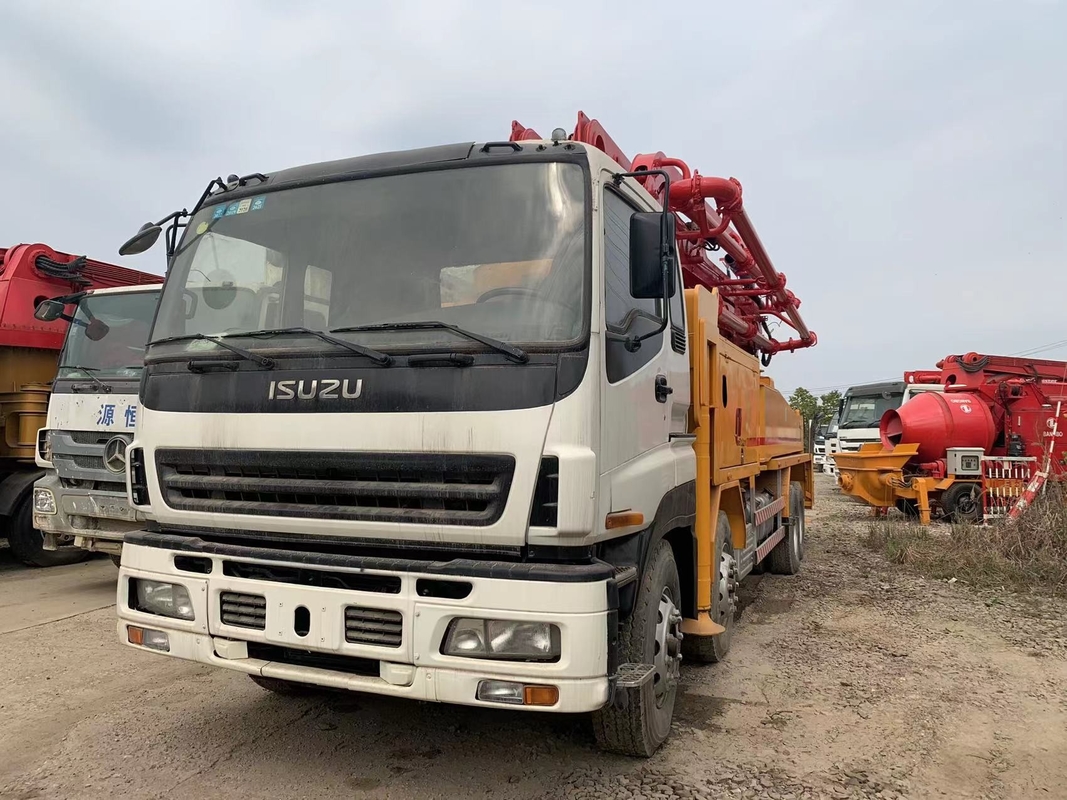

Model: SG5341THB 42m
Fault Self Diagnostic Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One Button Boom Extend/Retract
Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.
Coordinated Section Operation
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections
Safety Technology
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.

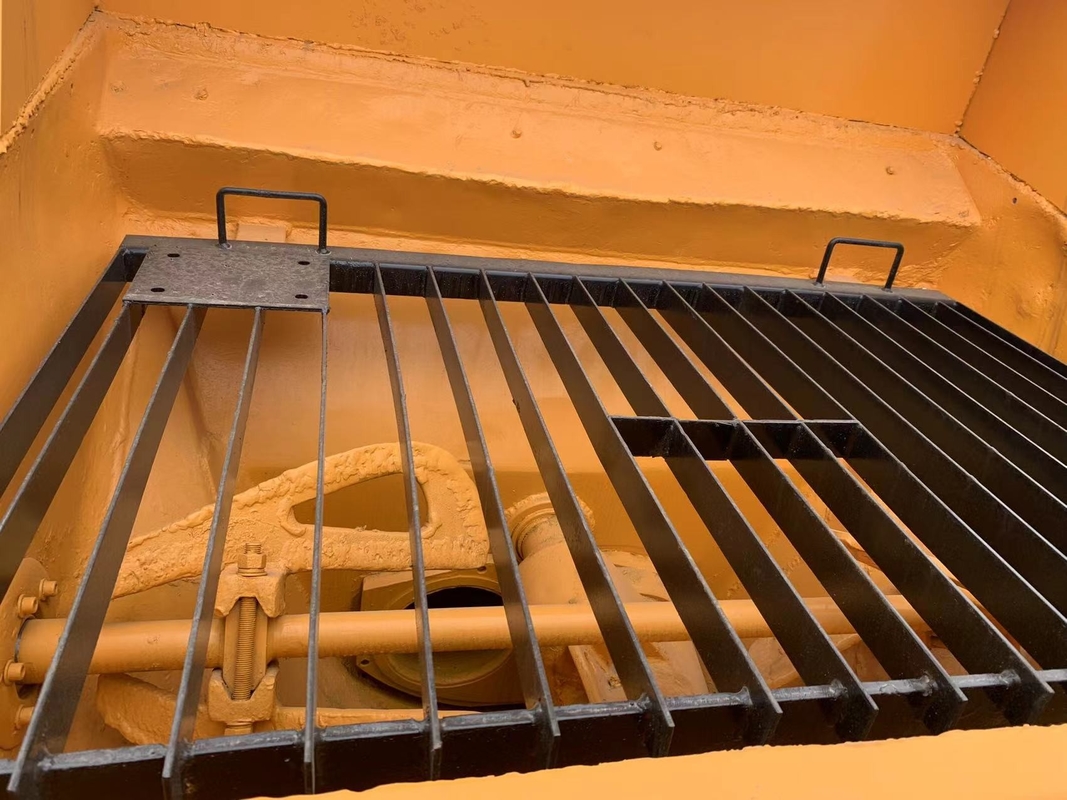

Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system.
| Concrete Pump Information | Truck information of Concrete Pump | ||
| Type | BOOM CONCRETE PUMPS | Truck Brand | ISUZU |
| Brand Name | Putzmeister | Truck Model | ISUZU |
| Pump Model | SG5341THB | Truck Year | 2008 year |
| Pump Year | 2009 year | VIN. | ****** |
| Boom Length | 42 METER | Axle Config | 4 Axle |
| Pump Hours | 4000 hours | Mileage | |
| Boom Section | 4 SECTIONS Z FOLD | Truck Hours | |
| Vertical Reach | 42 METER | Engine Make | ISUZU |
| Horizontal Reach | 38 METER | Engine Type | Diesel |
| Max Concrete Output | 140 m3/h | Engine Model | |
| Conrete Press. | 70 bar | Max.Engine Power | 287KW |
| Barrel Size | 600 L | Max.EngineTorque | 394HP |
| Radio Remote conctrol | concrete pump remote controller | Transmission | ISUZU |
| Radio Remote Brand | remote controller HBC 735 | Max. Speeds | 80 km/h |
| Condition | concrete pump but well condition | Total Weight | 32360KG |
| Recent Significant | Excellent condition, low hours | Dimension(L*W*H) | 12110*2490*3920mm |
Working and operation of all the components:
All the components of truck mounted concrete pump include all hydraulic components, electric components, mechanism parts, expendable consumptions, etc. During operating or working, all the working conditions of relative components must be met, and all the utilization requirements must be complied with strictly as components’manufacturer or suppliers require. Operators must be sure that all the components’functions are valid before operating.
1. Are you manufacturer ?
Yes , we are professional manufacturer of concrete machinery and lifting machinery from Changsha ,China.
2. What’s your main products ?
Concrete machinery :concrete mixer pump,concrete stationary pump,concrete truck mounted mixer pump,concrete pump ,concrete line pump ,concrete trailer pump
Spare Parts: S Value,pump line ,pump elbow,wear plate etc.
3. What’s your delivery time ?
It’s depend on the machinery and quantity.Usually it’s 7-10days if the goods are in stock ,or it’s 30 days if the goods are not in stock.
Our products are sold all over the world, you can rest assured.
