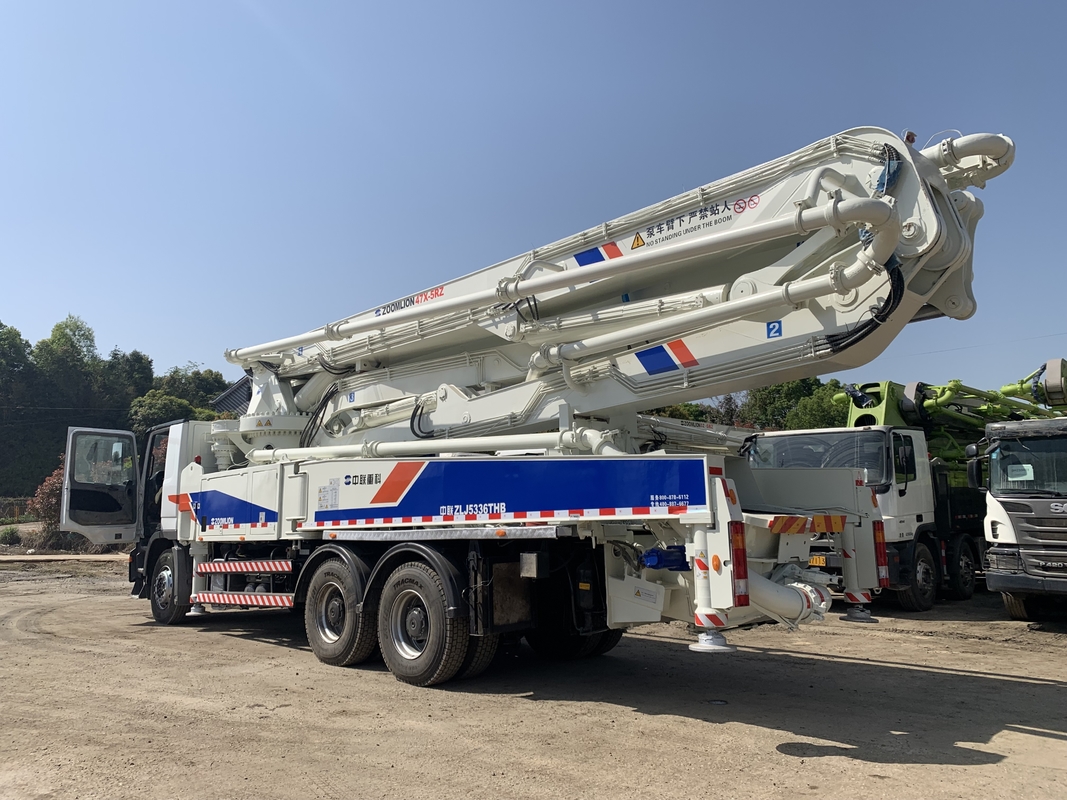

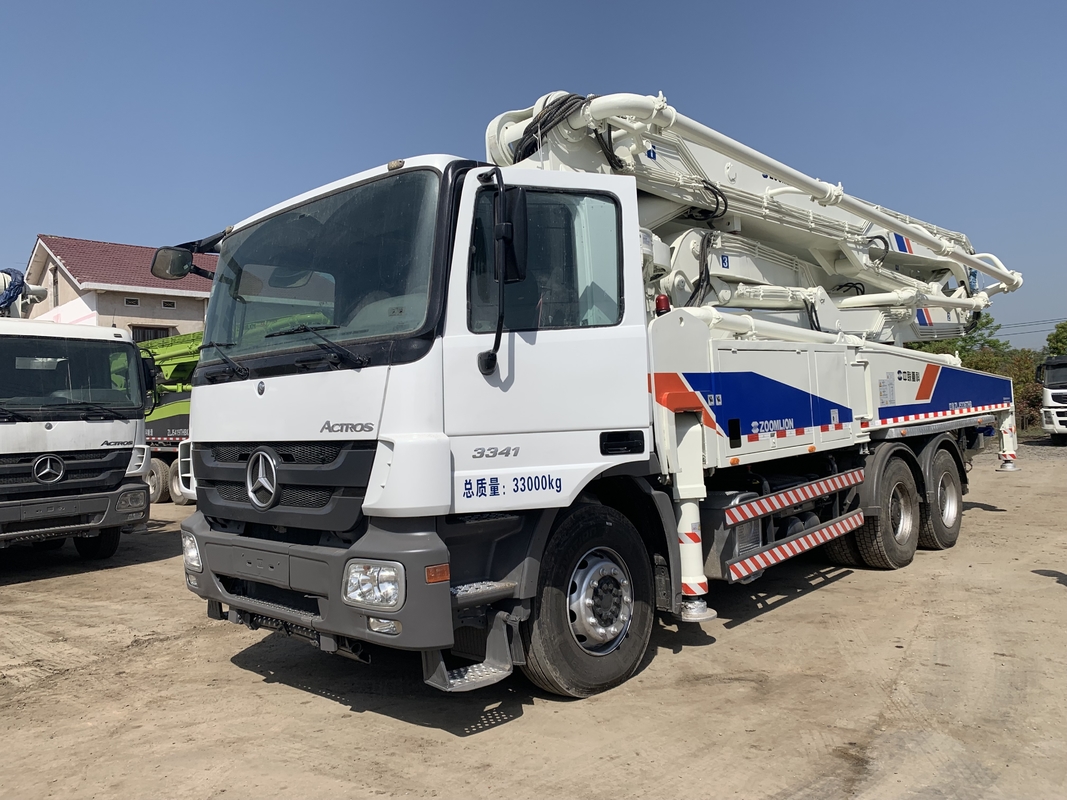

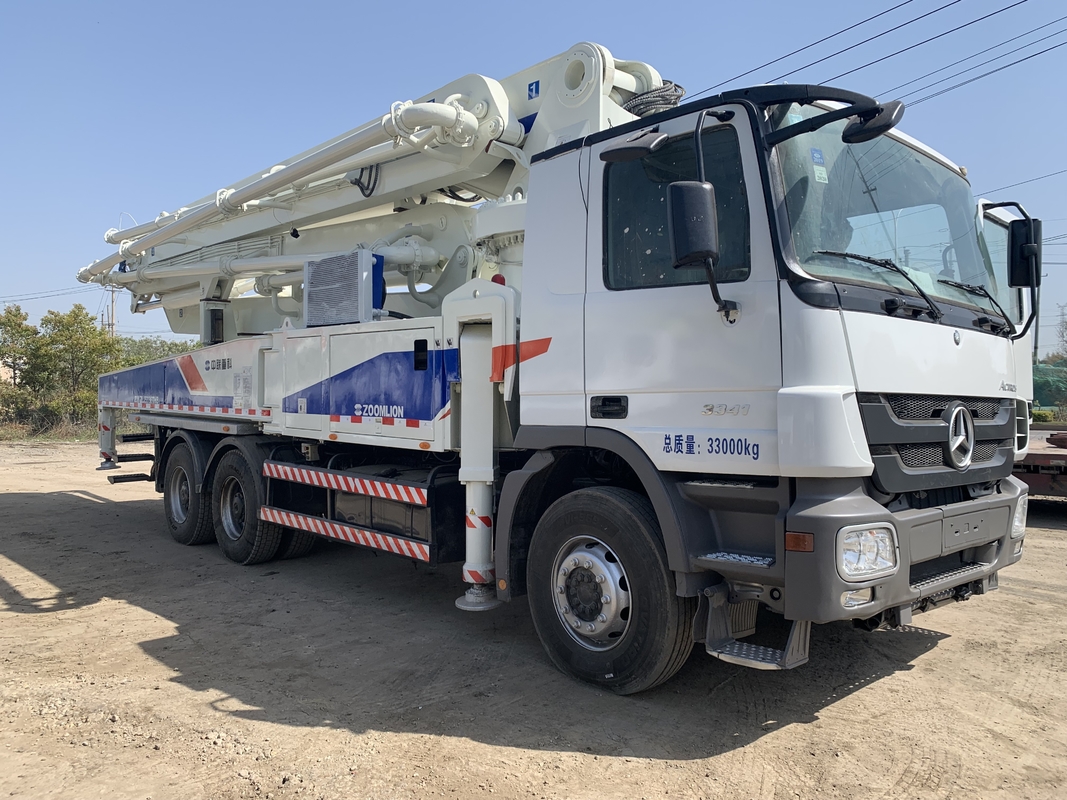

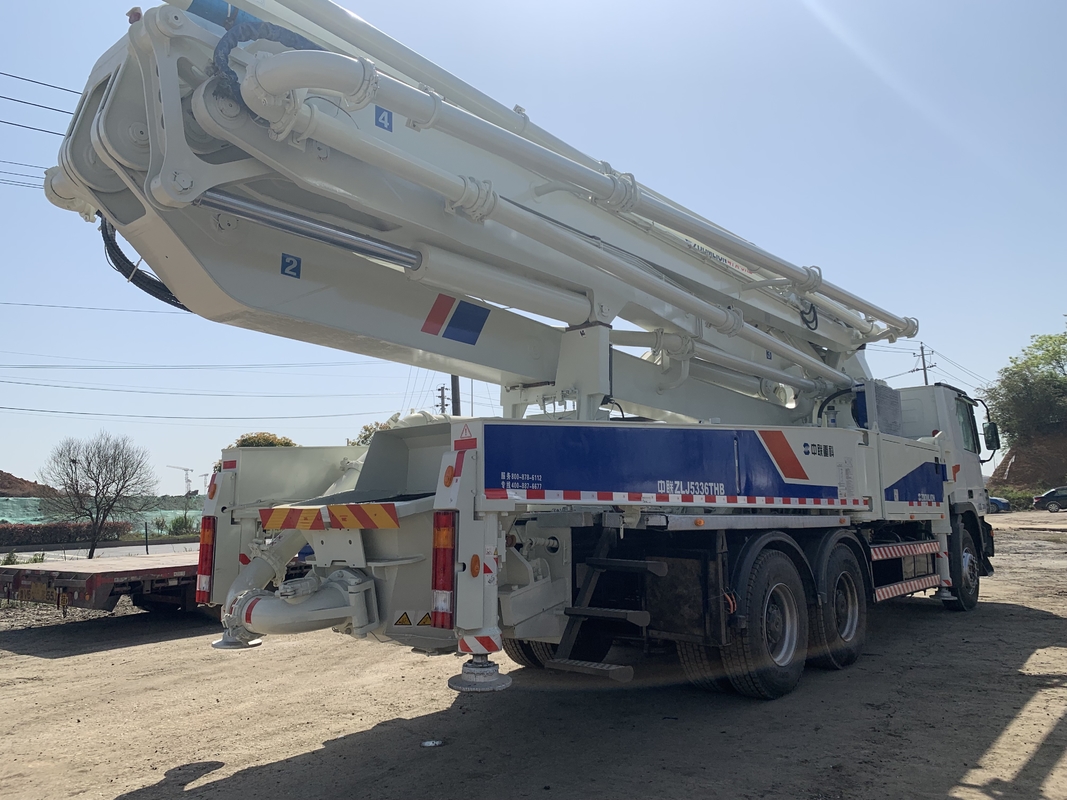

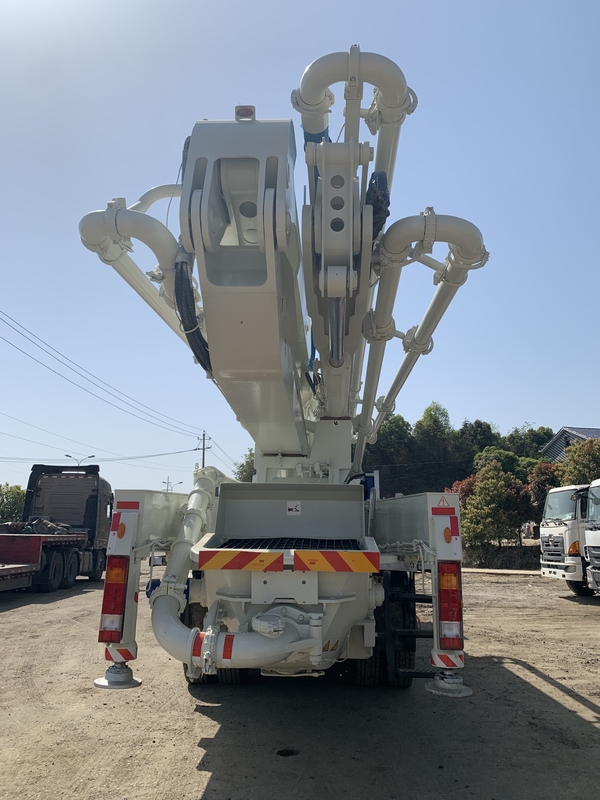

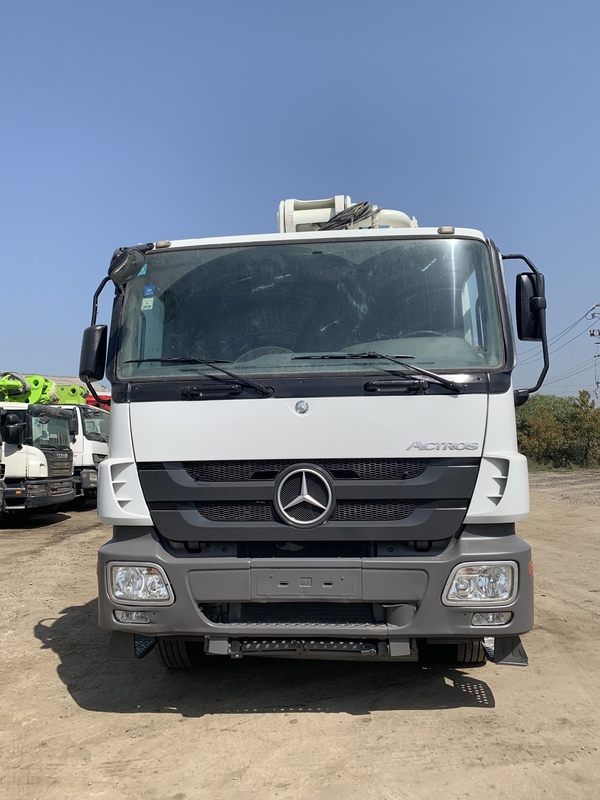

2012 Year Boom Pumping Machine Remanufactured Truck Mounted Concrete Beton Pump
Main Featuressed trucks for sale used trucks for sale used trucks for sale used trucks for sale used trucks for sale used trucks for sal
Fault Self Diagnostic Technology
Continually monitors more than 200 aspects of the system during operation. Faults are displayed on the monitor. Review of the detected faults can reduce troubleshooting time by 70%.
Smart Boom System
One Button Boom Extend/Retract
Press upward on the boom extend/retract button to extend the boom or press downward to retract the boom automatically.
Coordinated Section Operation
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections
Safety Technology
Boom Overload Protection Technology
Relief valves are mounted on the boom cylinder counterbalance valves. These valves will release pressure in the event of excessive boom load to prevent damage to the boom.
Hopper Screen Interlock Technology
As an operator protection measure, the pump will automatically stop when the hopper screen is opened.
Hydraulic Oil Level Monitoring
The oil level in the hydraulic reservoir is continually monitored. If the level drops below a preset level, an alarm will sound and the pump will be stopped to prevent damage to the hydraulic system
| Concrete Pump Information | Truck information of Concrete Pump | ||
| Type | BOOM CONCRETE PUMPS | Truck Brand | Mercedes Benz |
| Brand Name | Zoomlion | Truck Model | Actros 3341 |
| Pump Model | ZLJ5336THB | Truck Year | 2011 Year |
| Pump Year | 2012 year | VIN. | WDANHC*****8888 |
| Boom Length | 47METER | Axle Config | 3 axle |
| Boom Section | 5 SECTIONS RZ FOLD | Truck Hours | 3000 hours |
| Vertical Reach | 47 METER | Engine Make | Actors |
| Horizontal Reach | 43 METER | Engine Type | Diesel |
| Max Concrete Output | 120/70 m3/h | Engine Model | |
| Conrete Press. | 11/7 Mpa | Max.Engine Power | 294KW |
| Radio Remote conctrol | concrete pump remote controller | Max. Speeds | 80 km/h |
| Condition | concrete pump but well condition | Total Weight | 32870kg |
| Recent Significant | Excellent condition, low hours | Dimension(L*W*H) | 12060*2500*4000 |
| Repairs | Concrete pumps system | Maintenance | Changed all filters |
| Hydraulic System | Engine oil | ||
| Electrical System | Gear box oil | ||
| Changed Spare Parts | Tires | ||
| Checked Boom | Cab | ||
| Changed Seals | Driving testing | ||
Q1: Why chose you?
A1: We have good after-sales services,you can find us at per 24 hours.
A2: Strictly testing and checking before shipping.
Q2: How to deal the order?
A1: Payment terms: T/T 30% as deposit, and 70% before delivery.
A2: We'll show you the photos of the products and packages before you pay the balance.
Q3: Are you interested in dealership with local company?
A1: Yes, we are quite interested in this business. We'd like to cooperate with some local partner to sell more World machines in local market and supply better service.
Q4: How do you make our business long-term and good relationship?
A1: We keep good quality and competitive price to ensure our customers benefit.
A2: We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Our products are sold all over the world, you can rest assured.
