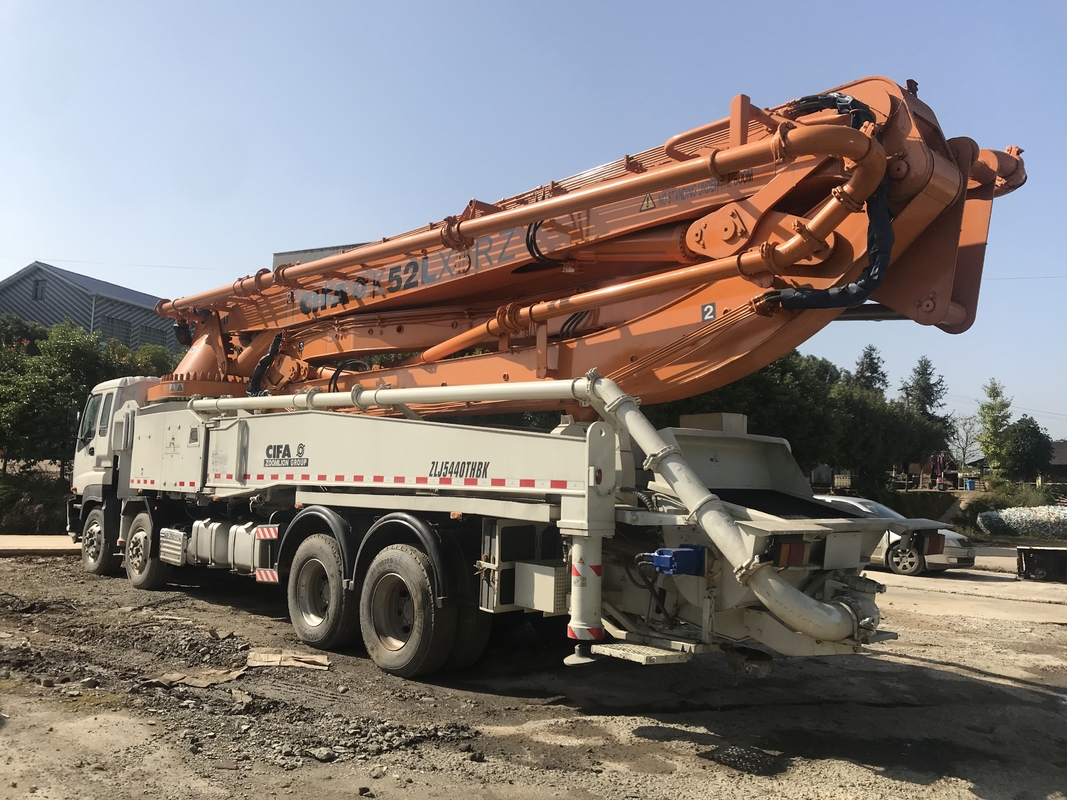

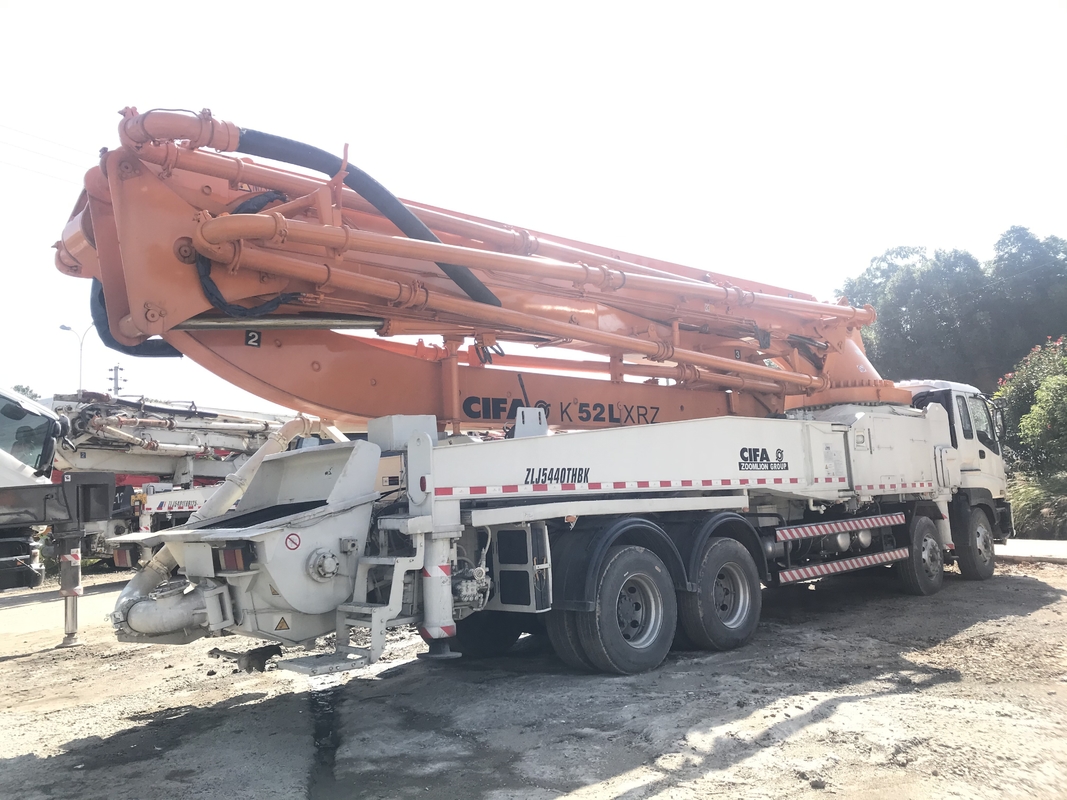

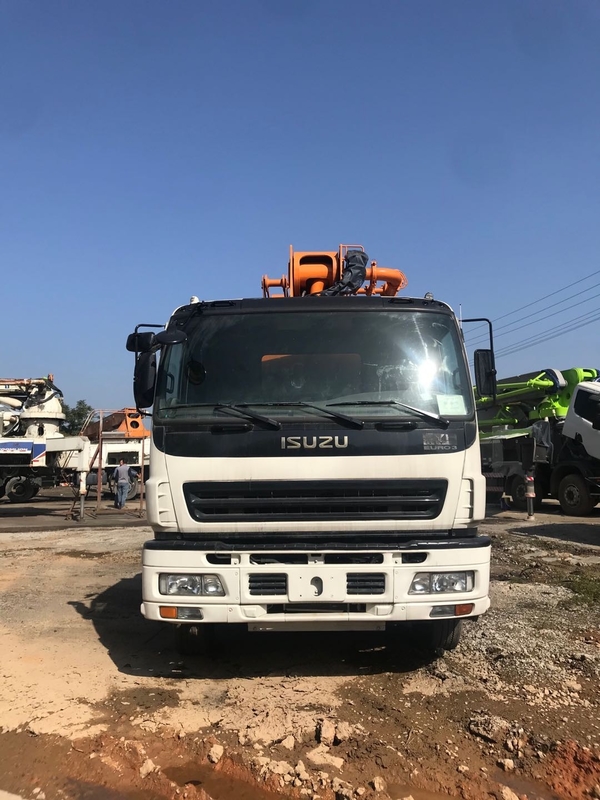

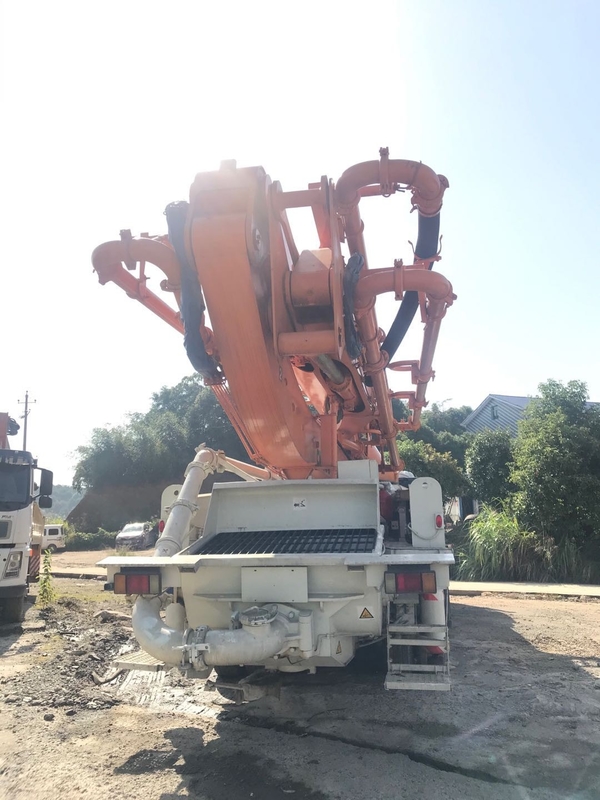

48m 160m3/H Large Concrete Pumping Truck CIFA 48m Used Concrete Pump Truck
Concrete pump truck is a kind of machine which uses pressure to transport concrete continuously along the pipeline. It is composed of pump body and delivery pipe. According to the structure, it can be divided into piston type, extrusion type and hydraulic diaphragm type. The pump body is installed on the chassis of the car, and then equipped with a retractable or flexible distributing rod, which forms the pump truck. The concrete pump truck is transformed from the chassis of truck. It is equipped with motion and power transmission device, pumping and mixing device, distributing device and other auxiliary devices. The power of the concrete pump truck transmits the power of the engine to the hydraulic pump group or the rear axle through the power transfer box, and the hydraulic pump pushes the piston to drive the concrete pump to work. Then the concrete is transported to a certain height and distance by using the distributing rod and delivery pipe on the pump truck.
| Concrete Pump Information | Truck information of Concrete Pump | ||
| Type | BOOM CONCRETE PUMPS | Truck Brand | ISUZU |
| Brand Name | Zoomlion | Truck Model | Actros 4141 |
| Pump Model | ZLJ5400THBK | Truck Year | 2012year |
| Pump Year | 2013 year | VIN. | JALY9F5Y****** |
| Boom Length | 48METER | Axle Config | 4 Axle |
| Pump Hours | 3000 hours | Mileage | |
| Boom Section | 5 SECTIONS RZ FOLD | Truck Hours | |
| Vertical Reach | 48METER | Engine Make | isuzu |
| Horizontal Reach | 44METER | Engine Type | Diesel |
| Max Concrete Output | 160/96 m3/h | Engine Model | |
| Conrete Press. | 7/11 Mpa | Max.Engine Power | 300kw |
| Barrel Size | 500 L | Max.EngineTorque | |
| Radio Remote conctrol | concrete pump remote controller | Transmission | BENZ |
| Radio Remote Brand | remote controller HBC 719 | Max. Speeds | 80 km/h |
| Condition | concrete pump but well condition | Total Weight | 39720KG |
| Recent Significant | Excellent condition, low hours | Dimension(L*W*H) | 13100*2500*4000mm |
| Repairs | Concrete pumps system | Maintenance | Changed all filters |
| Hydraulic System | Engine oil | ||
| Electrical System | Gear box oil | ||
| Changed Spare Parts | Tires | ||
| Checked Boom | Cab | ||
| Changed Seals |
Driving testing
|
||
Main Features
1) The large-diameter and big-flow valve group, small in size and light in weight , is well known for its high response speed and less power loss.
2) The large displacement pumping design ensures high pumping pressure, low mechanical wear, fewer times of commutation and longer service life of wearing parts.
3) The qutomatic concrete emptying technology makes daily maintenance and repair fast and convenient.
4) The new generation of electronic control system, which adopts an energy-saving control technology, is safe and reliable and enjoys a high maintainability. The fuel consumption during concrete pumping operation is about 0.5L/m3
5) The adoption of fault self-diagnosis system,CAN bus and special controller applications ensures that the operator can get the fault information and solve the problem in time, greatly improving the reliability of the electrical system.
Q: Why do you choose us?
A: we are the manufacturer,with 20 years experience.
Q: What is your Quality Control (QC)?
A: Third Control, ISO,CCC,CE Certificate ,European Certificate.
Q: How to visit your company?
A: Our factory is in Changsha city, Hunan Province.
Q: which countries did we export?
A: Egypt, Peru, Chile, Cambodia, and the Middle East, etc.
Q: Can you customize your products?
A: Yes, we will do the customization by requirement without affecting the quality of the products
Q: How long is the warranty period ?
A: We offer 12 months warranty for the machine (main body) from the date of installation finished.
Q: What's the payment method ?
A: We accept L/C, T/T and D/P payment.
Our products are sold all over the world, you can rest assured.
