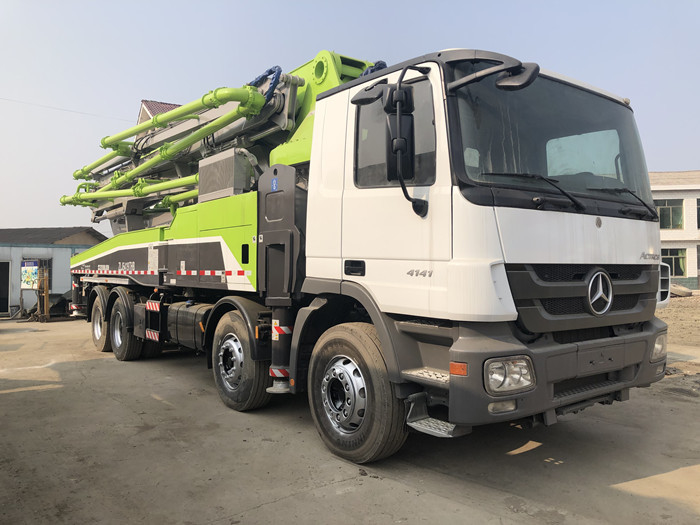

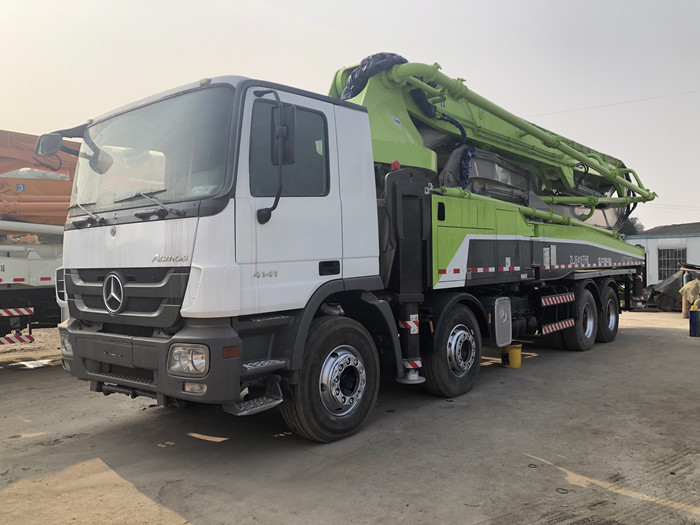

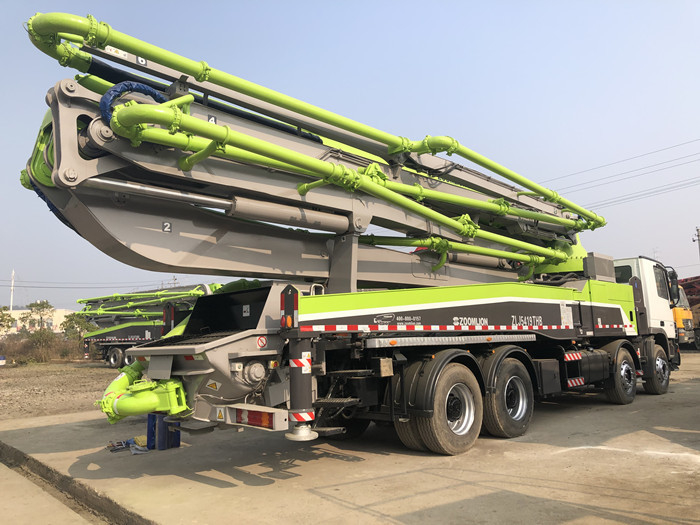

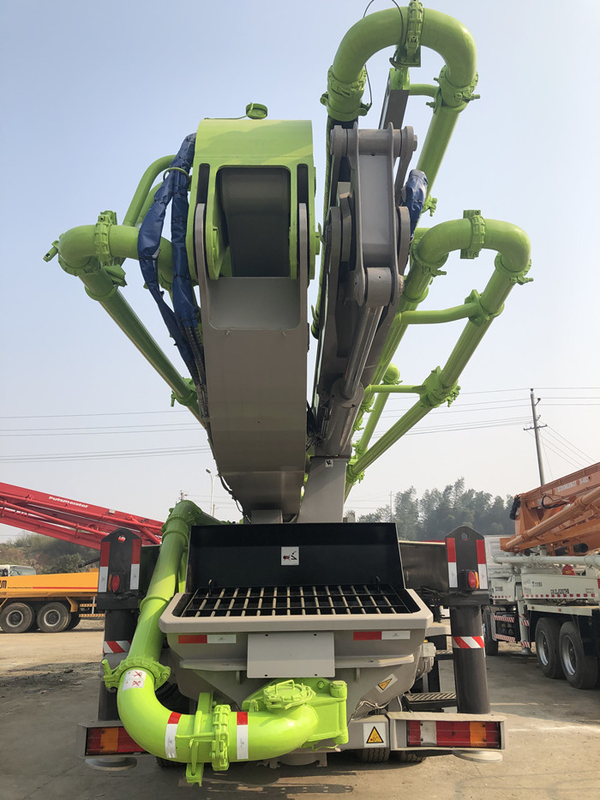

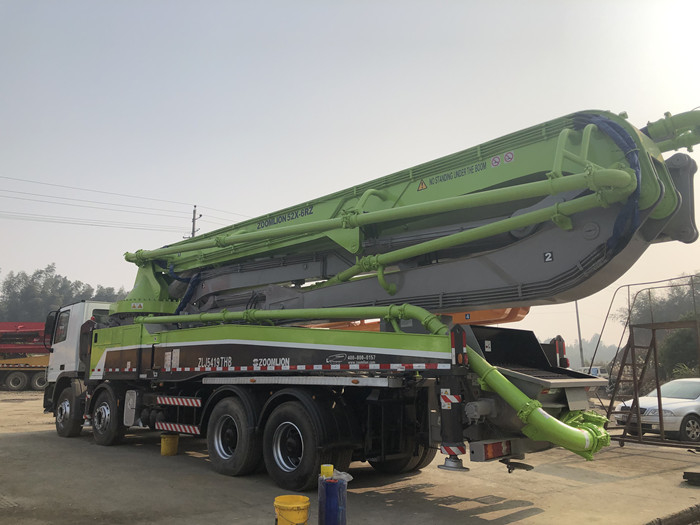

52M Used Concrete Pump Truck Good Quality Refurbishment Machine
Truck Pumps 52X-6RZ
• Compact in design, 52m pump mounted on a 4-axle truck.
• Active boom vibration control technology(ABC):All-position active vibration reduction technology of boom, reducing vibration by 50%. More stable boom, more safety.
• Boom intelligent damping technology:The soft control of booms in starting, slewing and stopping reduces the impacting vibration of booms and therefore makes the vehicle operate more stably, reliably and safely.
• Accurate pumping control technology(APC):Great leap of pumping accuracy and adaptability, improving pump efficiency.
• Adaptive concrete material pumping technology: Improve pumping control system for poor concrete with segregation and big viscosity, and auto-adaptive pumping mode, reducing the block rate by more than 50%.
Parameter:
| Model | Unit | 52X-6RZ | |
|---|---|---|---|
| Pump Unit | Maximum theorical output | m3/h | 180 |
| Maximum pressure on concrete | bar | 110 | |
| Conc. cylinders (diam. x stroke) | mm | 260x2100 | |
| Concrete hopper capacity | L | 600 | |
| Hydraulic circuit | Closed | ||
| Boom Section | Maximum vertical reach | m | 51.1 |
| Maximum horizontal distance | m | 45.8 | |
| Minimum unfolding height | m | 13.1 | |
| Section numbers | 6 | ||
| Rotating angle | ±270° | ||
| End hose lenght | m |
3 |
|
