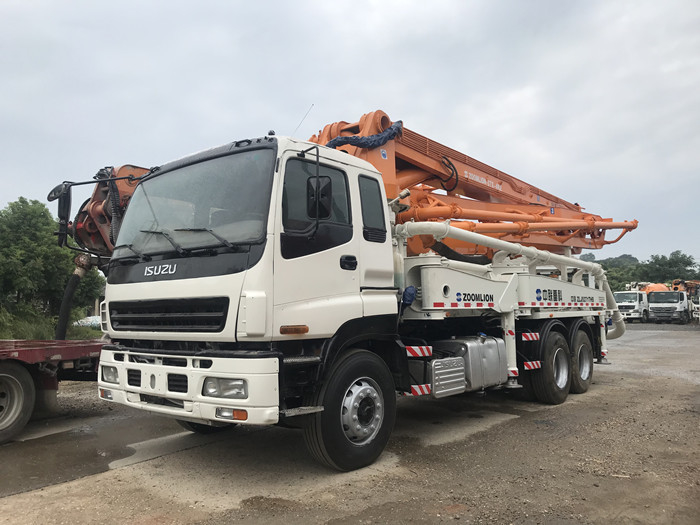

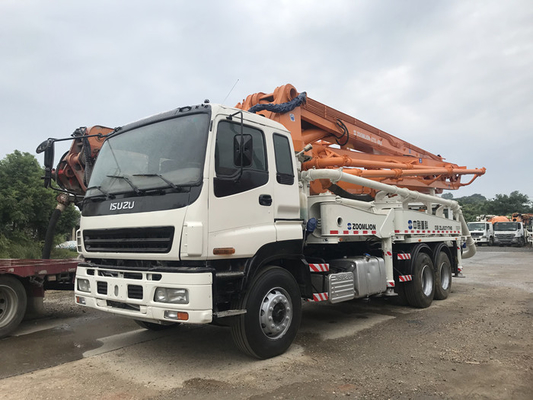

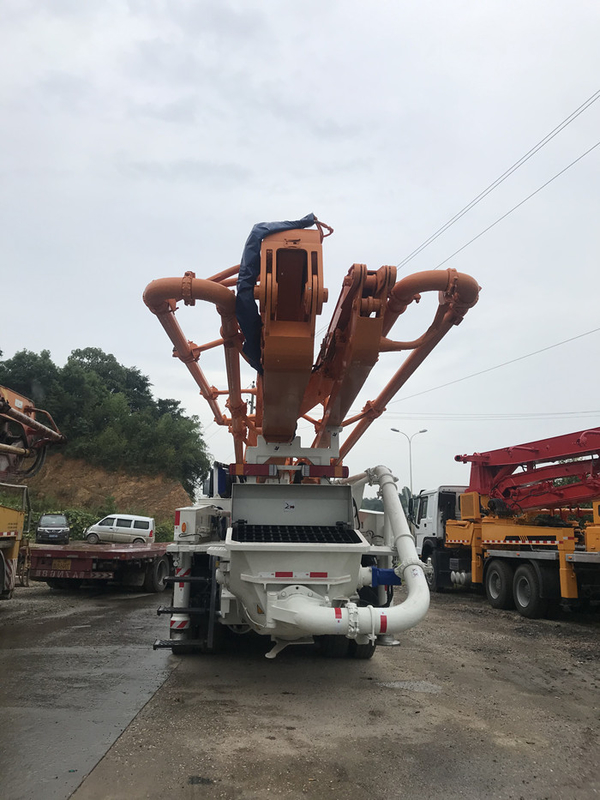

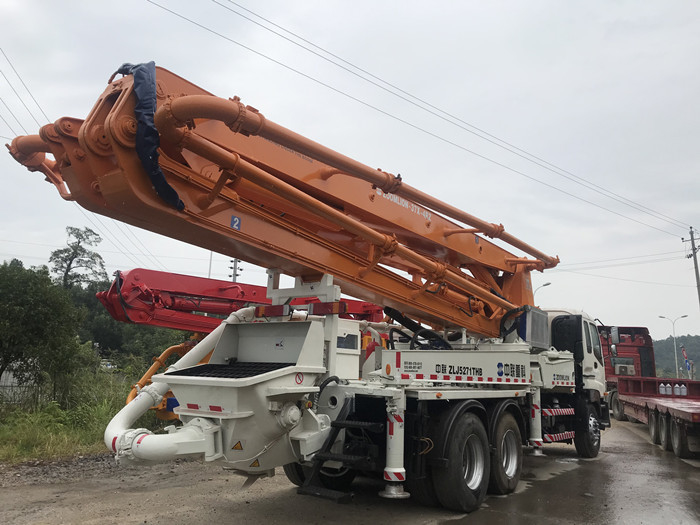

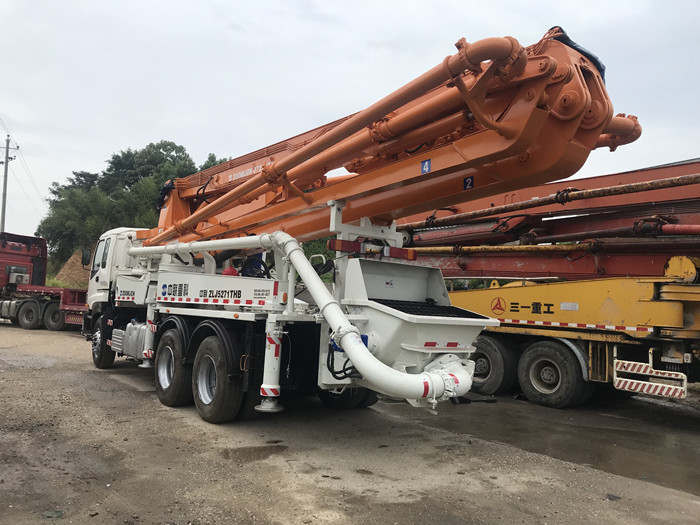

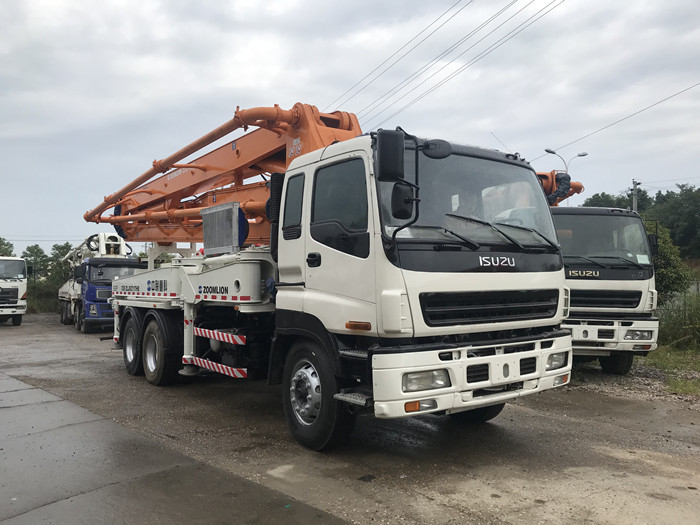

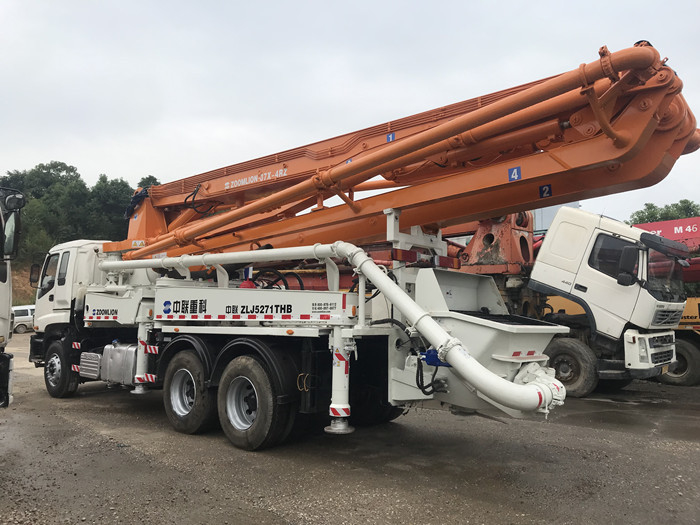

120m3/H Swing Leg Zoomlion 37m Isuzu Truck-Mounted Concrete Pump Truck 265kw
| Model | Unit | 37M |
| Overall Length | mm | 11650 |
| Overall Width | mm | 2500 |
| Overall Height | mm | 3870 |
| Total Weigh | kg | 27995 |
| Thoery output capacity | m3/h | 80/120 |
| Max Concrete Pressure | Mpa | 10/6.5 |
| Theoretical pumping times | min | 23/28 |
| Concrete Cylinder Bore/Stroke | mm | 260×1600 |
| Hydraulic System type | Open Loop | |
| Pumping System Pressure | Mpa | 32 |
| Oil tank volume | L | 500 |
| Chassis Model | ———— | Isuzu |
| Wheel Bas | mm | 5200 |
| Drive form | ———— | 6×4 |
| Engine Model | ———— | Isuzu |
| Engine Power | KW | 265 |
| KW | ||
| Emission Standard | ———— | Euro III |
| Fuel tank Capacity | L | 163 |
| L | ||
| L | ||
| Max Speed | Km/h | 80 |
| Km/h | ||
| Km/h |
50m Isuzu concrete pump truck is equipped with more efficient skirt valve and S valve pump technology, more stable reversing buffer technology, more reliable full hydraulic reversing technology.
Advantages and highlights:
1.Ultimately Safe Boom.
2. Lower Structure of High Rigidity.
3.Hydraulic System of Outstanding Performance.
4.Effectively reduce emissions with the reversing, vulnerability of longer life.
5.The pumping system adopts electric control reversing, reversing faster and the system impact smaller.
6.The actual pumping efficiency is more than 5% higher than the conventional hydraulic control reversing system.
Q: What is your oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 330V 50Hz.
Q: How about guarantee period?
A: 1 year for non-easy worn parts. We strictly follow the warranty terms.
Q: What is the payment terms?
A: We accept L/C, T/T. 30% by T/T in advance, 70% by T/T before dispatching from factory.
Our products are sold all over the world, you can rest assured.
