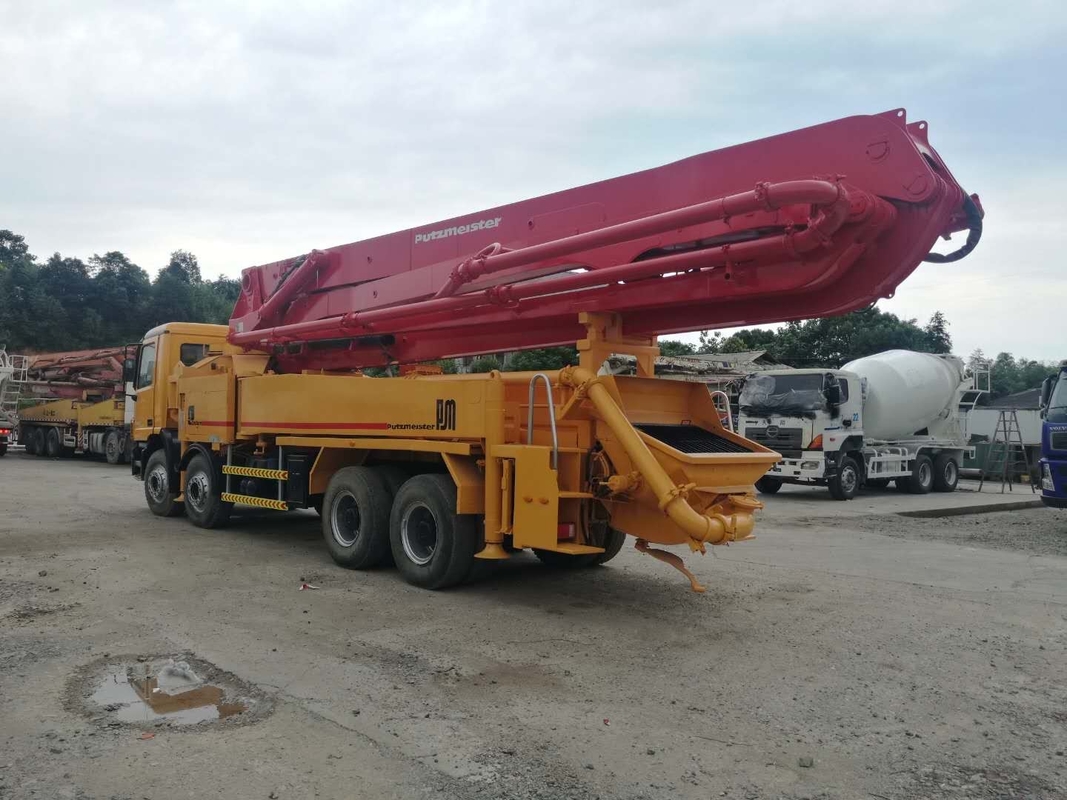

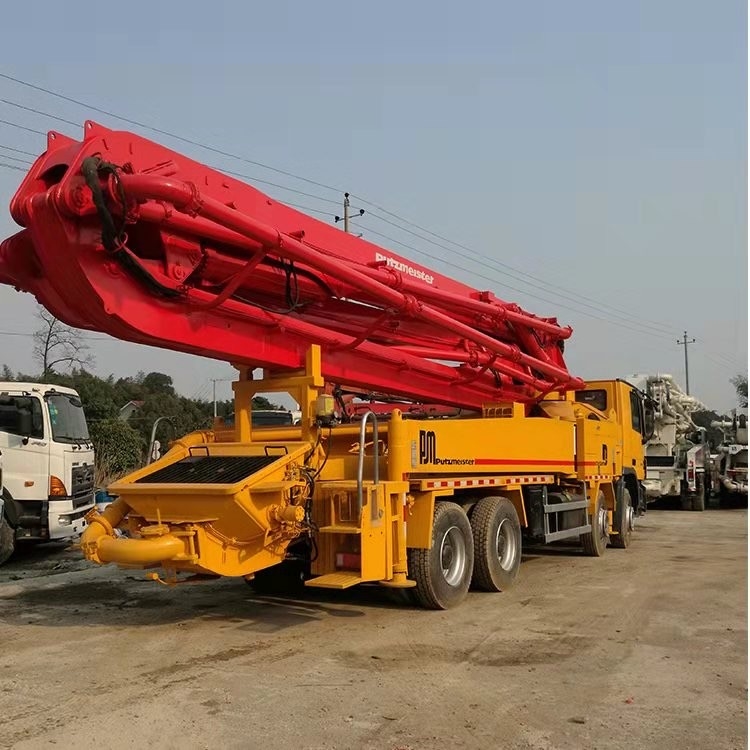

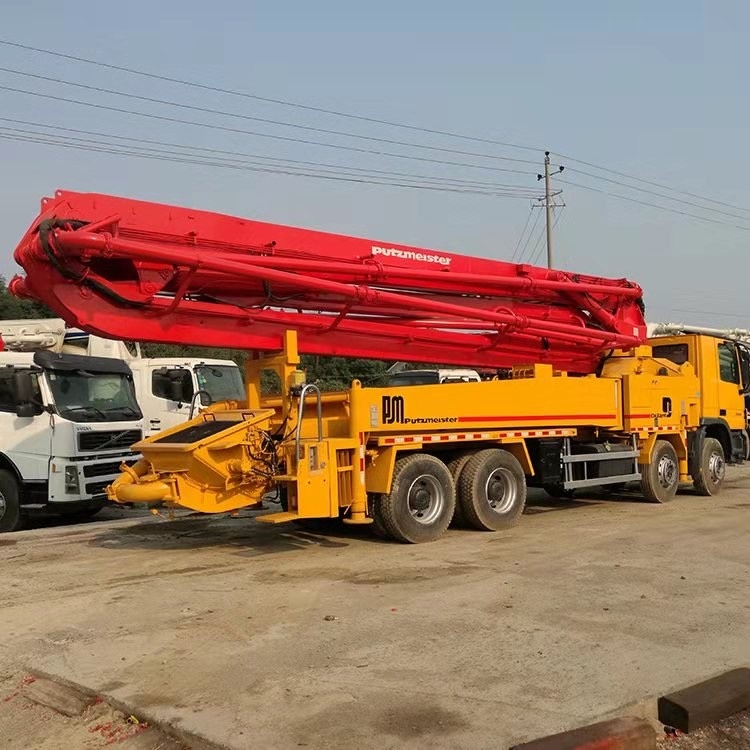

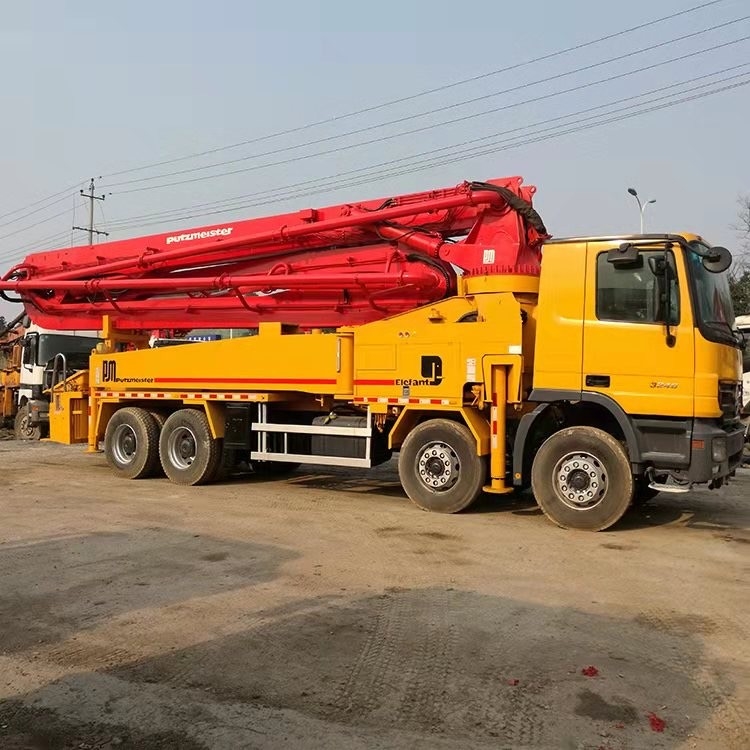

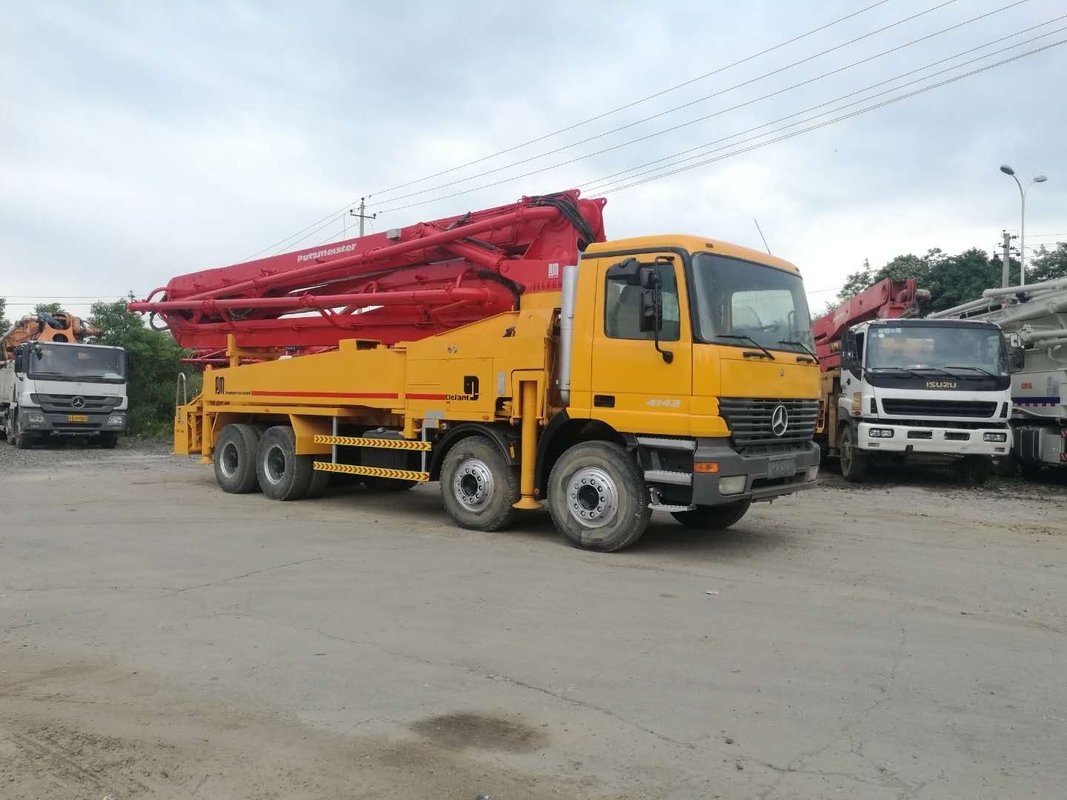

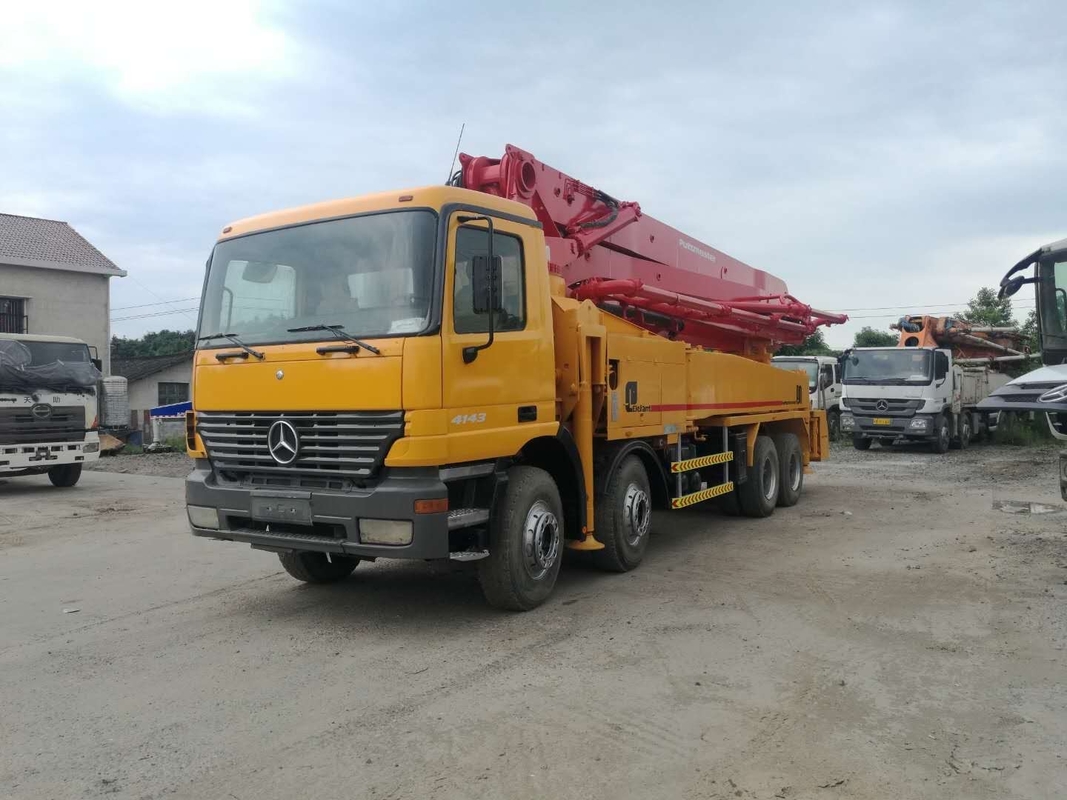

140m3/H Putzmeister 42m Benz Second Hand Concrete Pump Truck 290kw
| Model | Unit | 42X-4RZ | |
| Pump Unit | Max. Theor. output | m3/h | 140/80 |
| Max. Theor. concrete output Pressure | MPa | 7-11 | |
| Rated working pressure | MPa | 35 | |
| Pumping frequency | min-1 | 27/17 | |
| Hopper capacity | L | 600 | |
| Filling height | mm | 1540 | |
| Hydraulic system type | opened loop | ||
| Distribution valve | S valve | ||
| Oil cylinder dia.×stroke | mm | φ130×2100 | |
| Concrete cylinder dia.×stroke | mm | φ230×2100 | |
| Hydraulic oil cooling | Wind cooling | ||
| Recommended concrete slump | cm | 12~23 | |
| Max. aggregate dimension | mm | 42 | |
| Boom Section | Structure type | 42X-4RZ | |
| Placing depth | m | 42 | |
| Max. horizontal distance | m | 38 | |
| Max. placing depth | m | 35.9 | |
| Slewing angle | ±270° | ||
| Boom number | 4 | ||
Payment
We have many ways of delivery. Safe, fast and trust
1.Container: which is cheapest and fast.
2.Bulk cargo ship: which is better for bigger construction equipment
3.Flat rack ship: which is better for bigger machine and also no need to dismantle
4.RO RO ship: which is good for every machine and faster.
You can depend on your own requires to choose one favorite.
Delivery: Within 7 working days after your payment.
Q: What is your oil pump brand?
A: Germany Rexroth or Korea Kawasaki.
Q: The motor power is the electrical or diesel?
A: Both type. The power of electric type apply to 330V 50Hz.
Q: How about guarantee period?
A: 1 year for non-easy worn parts. We strictly follow the warranty terms.
Q: What is the payment terms?
A: We accept L/C, T/T. 30% by T/T in advance, 70% by T/T before dispatching from factory.
Our products are sold all over the world, you can rest assured.
