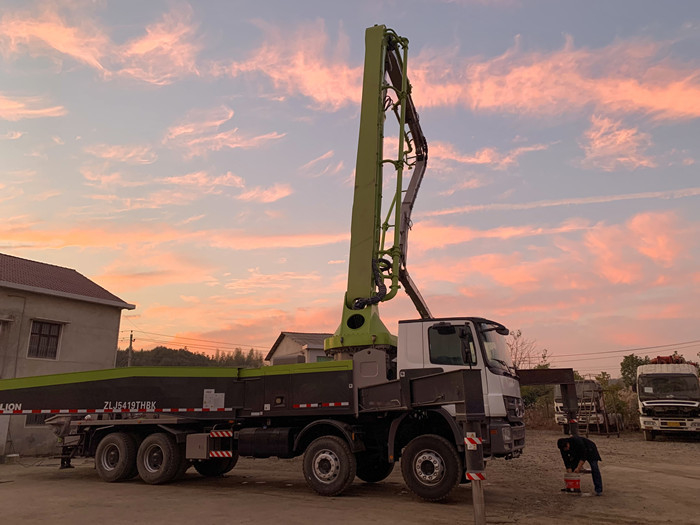

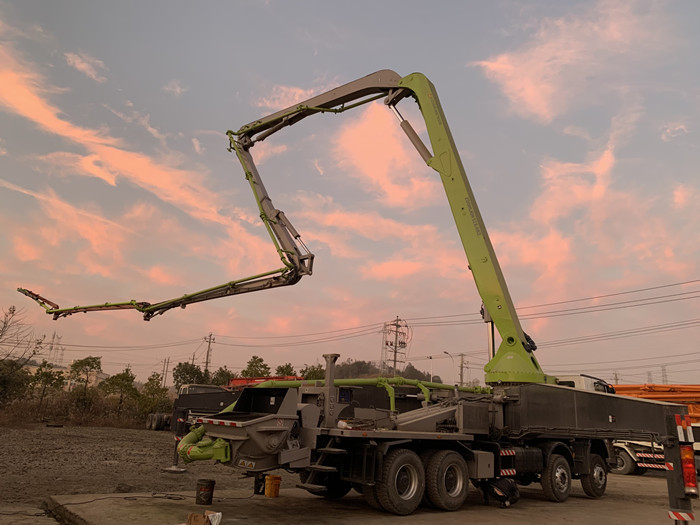

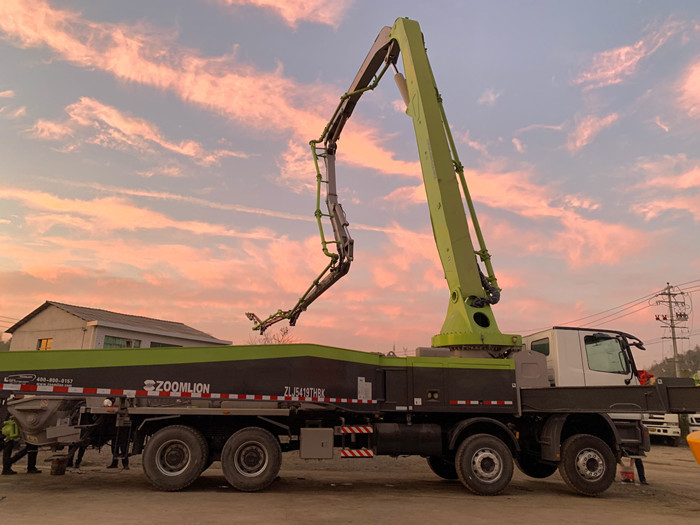

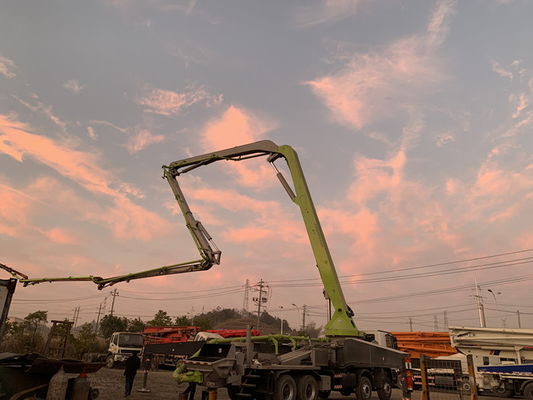

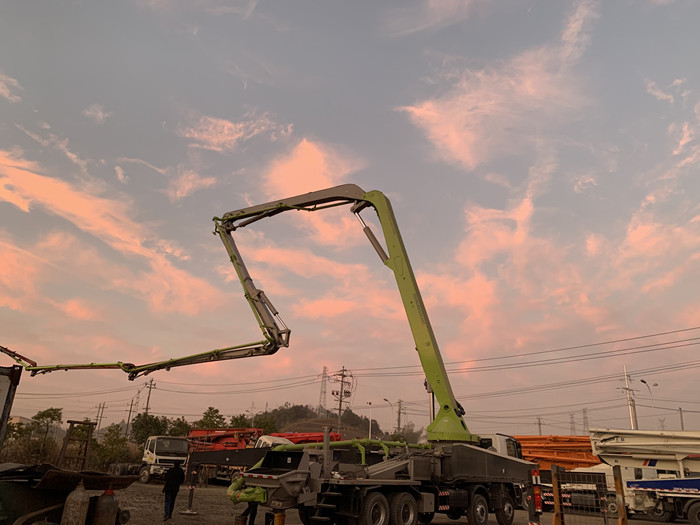

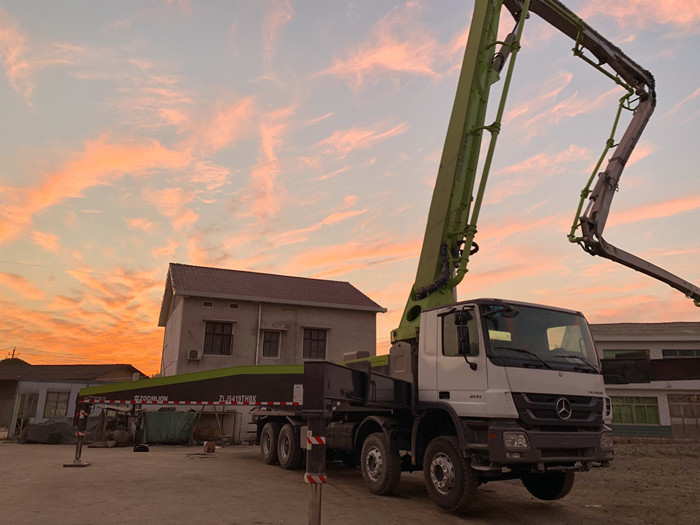

60m Truck Mounted Concrete Pump Concrete Valve Boom 60X-6RZ Concrete Pump Truck
|
Distribution valve |
S-valve |
|
|---|---|---|
| Max. Concrete Output | m3/h | 180 |
| Max. Concrete Pressure | bar | 90 |
| Delivery Cylinder | mm | 260 |
| Stroke Length | mm | 2100 |
| Strokes | 1/min | 27 |
| Hopper Capacity | L | 600 |
| Filling height | mm | 1540 |
| Hydraulic System | Closed | |
| Hydraulic oil cooling | Double fans | |
| High/Low Press. Switch | Manual | |
| Lubrication on pump | Automatic | |
| Lubrication on hopper | Automatic | |
| GPS Data Manage | Optional | |
|
Boom Control Valve |
Proportional |
|
| Number of Arms | 6 | |
| Folding System | RZ | |
| Max. Reach Vertical | m | 60 |
| Max. Reach Horizontal | m | 56 |
| Max. Reach Depth | m | 50 |
| Min. Unfolding Height | m | 14.1 |
| End Hose Length | m | 3 |
| Pipeline | DN125/5.5 | |
| Slewing Range | ±350° | |
| Slewing Motors | 2 motors | |
| Remote Control System | Radio | |
| Water Pump | 20L/min, 60bar | |
| Tool kits with box | Standard | |
Q:What is your main products?
A:Truck-mounted concrete pump, Concrete pump truck,Concrete line pump, Concrete mixer truck, Concrete pump spare parts, Crane and Lubricate oil.
Q:How is the quality of your products?
A: We have more than 15 years of repairing experience on concrete machines. According to the national and international standards, all of our machines are inspected and maintained carefully and strictly by our skillful workers , we will test each equipment until it works excellently before delivery. We guarantee that every machine we delivery to our customers are in good performance and high quality.
Q:How is the price?
A: We are specialized in refurbishing concrete machines ,and have lots of customers allover the world with our best price, we can give you a lower price because of our primary source.
Q:Will you provide after-sale service?
A: Yes. The warranty of our new machines is 12 months, and used ones are1 month, other than that we have a professional after-sale service team to solve your problems thoroughly and promptly.
Q:How about your service of the concrete pump spare parts?
A: We are dedicated to provide our clients concrete pumps spare parts with the highest quality,exact fitness and fast deliveries and services.
Our products are sold all over the world, you can rest assured.
