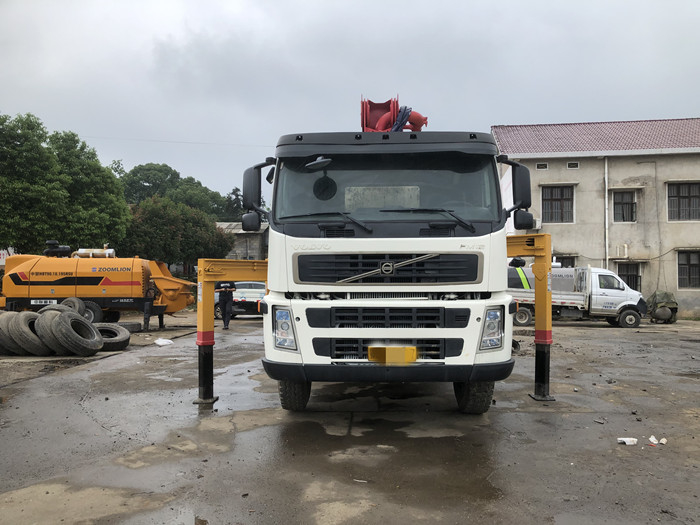

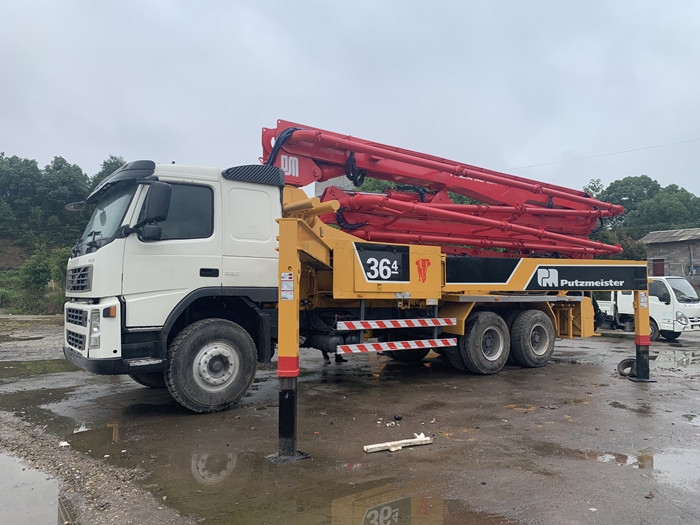

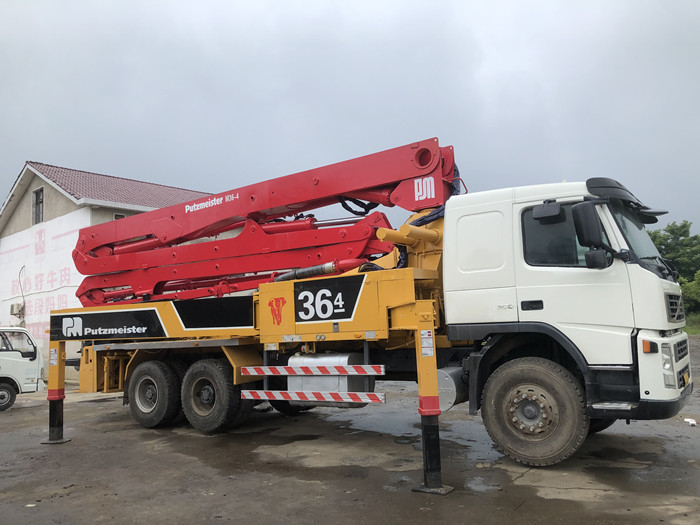

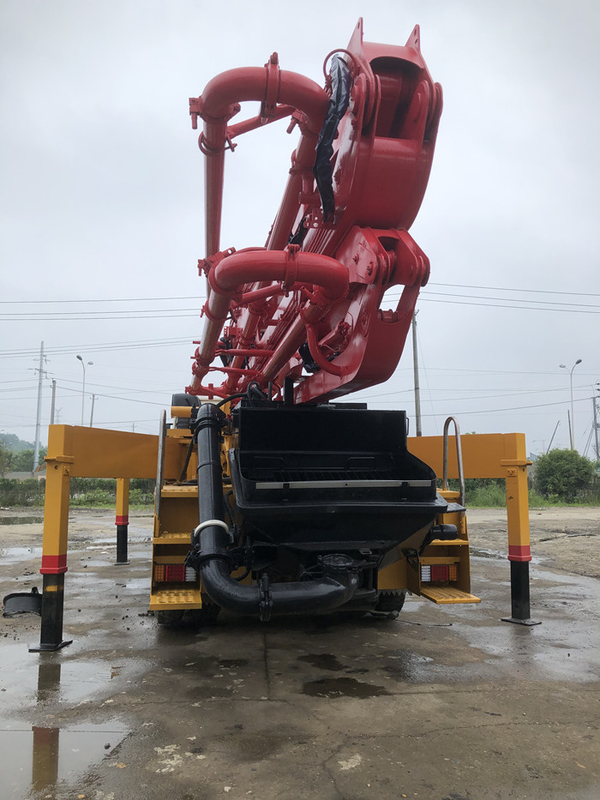

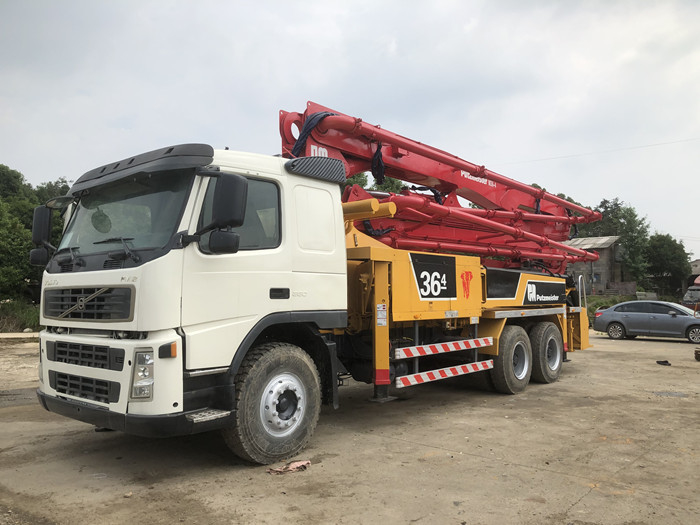

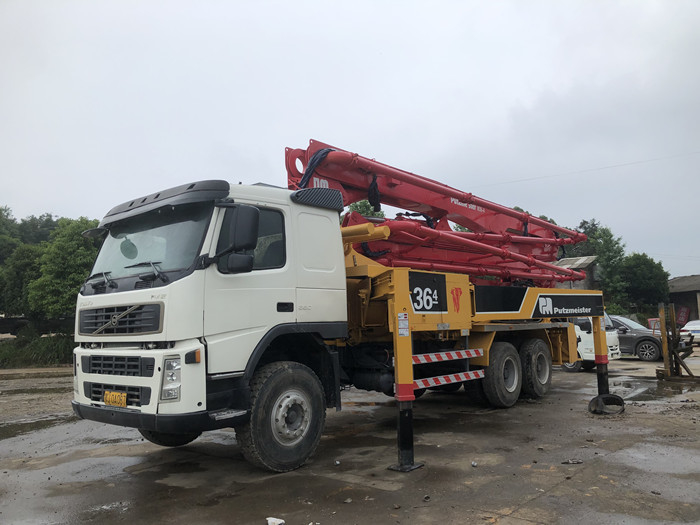

36m Concrete Pump Truck With Volvo Chassis
1. One Button Stabilization Technology
2. Boom Anti Vibration Technology
3. Anti Overswing Technology
4. Fault Self Diagnostic Technology
5. One Button Boom Extend/Retract
6. Boom Overload Protection Technology
| 36m Mobile Pump Truck Technical Specification | |||
| Items | Unit | Model of Whole Truck | |
| SG5267THB | |||
| Main Technical Parameters in Service | Theoretical Pumping Capacity | m3/h | 90 |
| Pumping Capacity Index | Mpa.m3/h | 360 | |
| Theoretical Pumping Pressure | Mpa | 8.5 | |
| Hopper Capacity | L | 700 | |
| Feeding Height | mm | 1370 | |
| Distributing Valve | S valve | ||
| Max. Distributing Radius | m | 32 | |
| Max. Distributing Height | m | 36 | |
| Max. Distributing Depth | m | 30 | |
| Height of Distributing Boom When Stretched | mm | 8450 | |
| Distance between Front Landing Legs | mm | 6507 | |
| Distance between Rear Landing Legs | mm | 6600 | |
| Distance between Front and Rear Landing Legs | mm | 7179 | |
| Diameter of Conveying Pipe | mm | 125 | |
| Length of End Hose | m | 4 | |
| Rotary Range of Distributing Boom | 365° | ||
| Number of Boom Sections | 4 | ||
| Rotary Angle of Each Boom Section | ° | 92/180/180/270 | |
| Remote-control Distance | m | 200 | |
| Main Technical Parameters in Traveling Condition | Max. Traveling Speed | km/h | 90 |
| Min. Turning Radius | mm | 8800 | |
| Brake Distance | m | 7 | |
| Approach Angle | ° | 16 | |
| Departure Angle | ° | 11 | |
| Chassis Model | Volvo | ||
| FM9 340 | |||
| Wheel Base between the First and the Second Axle | mm | 4600 | |
| Wheel Base between the Second and the Third Axle | mm | 1350 | |
| Front Tread | mm | 2022 | |
| Rear Tread | mm | 1830 | |
| Max. Engine Power | kw | 380HP (EURO IV) | |
| Max Engine Torque | n.m | 1350 (1100-1600r/min) | |
| Max. Grade Ability | % | 35 | |
| Fuel Consumption Limit | L/100km | 34 | |
| Overall Dimension (L ×W× H) | mm | 12154×2500×3970 | |
| Full-load Total Weight | kg | 25720 | |
Q:Why do you choose us?
A:we are the manufacturer,with 20 years experience.
Q:What is your Quality Control (QC)?
A:Third Control, ISO,CCC,CE Certificate ,European Certificate.
Q:How to visit your company?
A:Our factory is in Changsha city, Hunan Province.
Q:which countries did we export?
A: India, Bangladesh, Vietnam, Vietnam, and the Middle East, etc.
Q:Can you customize your products?
A:Yes, we will do the customization by requirement without affecting the quality of the products
Q:How long is the warranty period ?
A:We offer 12 months warranty for the machine (main body) from the date of installation finished.
Q:What's the payment method ?
A:We accept L/C, T/T and D/P payment.
Our products are sold all over the world, you can rest assured.
