According to the Simple operation
With the whole machine could be handle by one person Extremely saving the labor and employee
Get benefit from the muti-functional that Integrated the mixing and pumping by one machine, which its Intelligent muti-function design have solved the large manpower problem in normal construction projects
Low invest and risk,Other concrete pump truck,concrete pump and concrete batching plant was Unnecessarily
More 4-5 times work efficiency, short period of return profit than normal pump,large particle of all kinds of aggregate like coarse sand, river sand and the red sand can be easily pumped, In view of the scientific ratio of the self-mixing ingredient as known as 4-5 fingers refers to a reasonable ratio.
More Safer; Keep more security by easily pumped 20 floors or more
More efficient: 0.75m3 loading hopper, which its stable structural design and large volume have obviously improved overall efficiency
More stability: strictly regulate the process and make sure zero- failure rate
More reliable: 70 meters for vertical distance and 300 meters for horizontal distance as high-perform capability

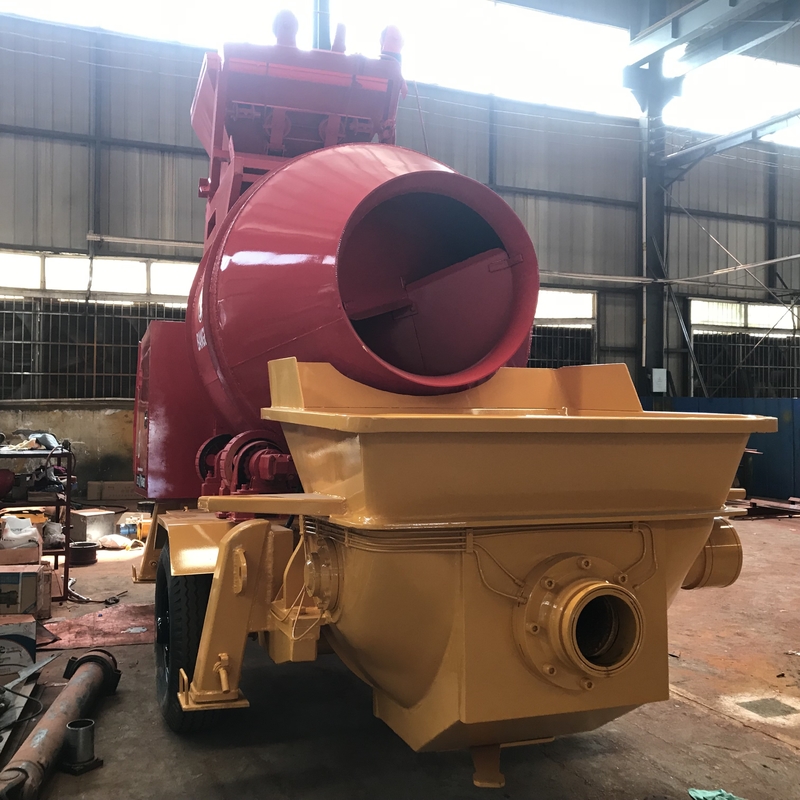

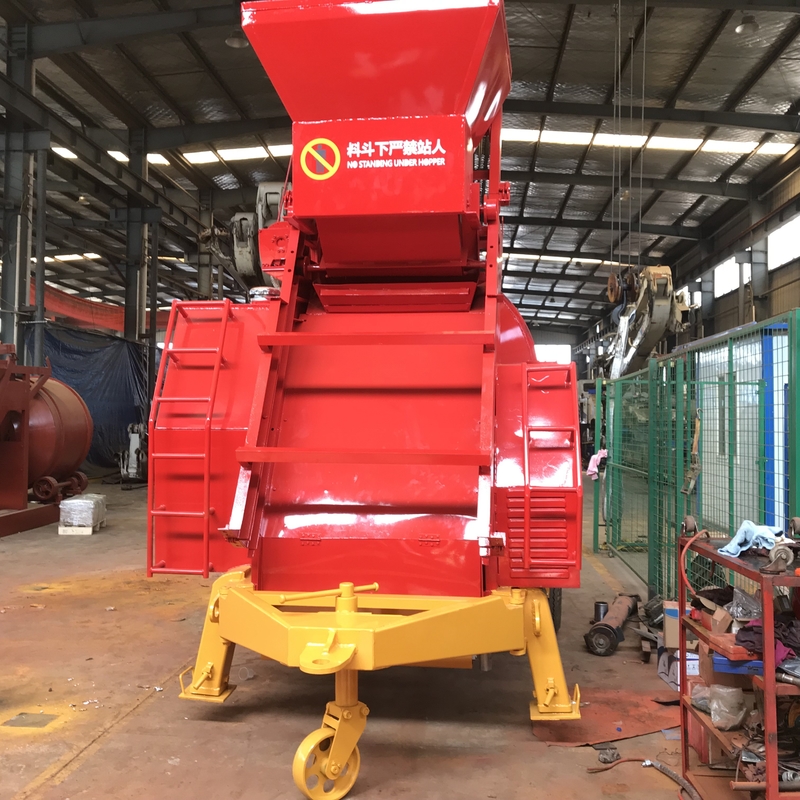

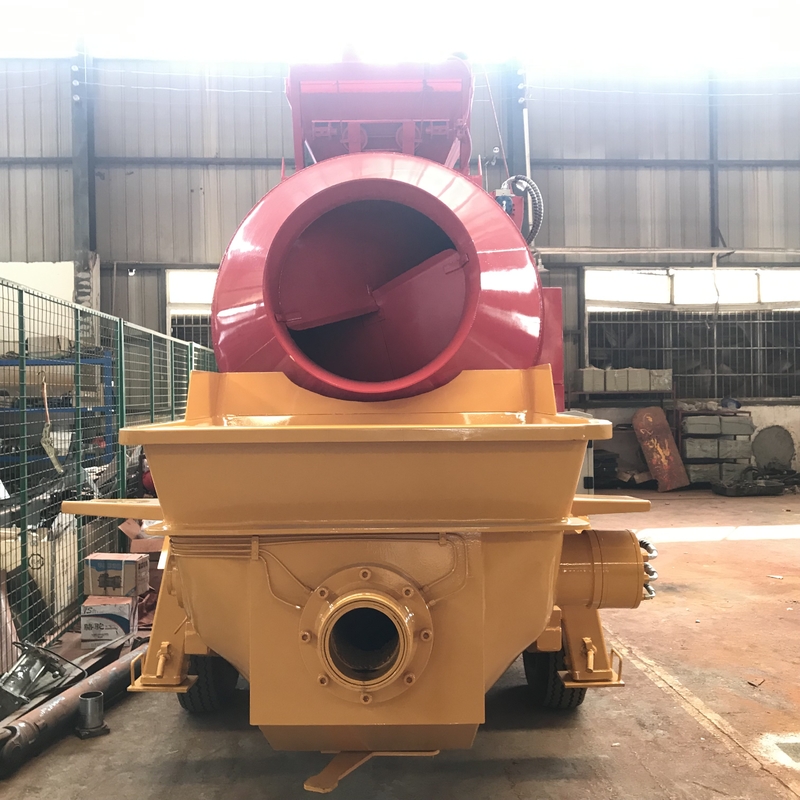

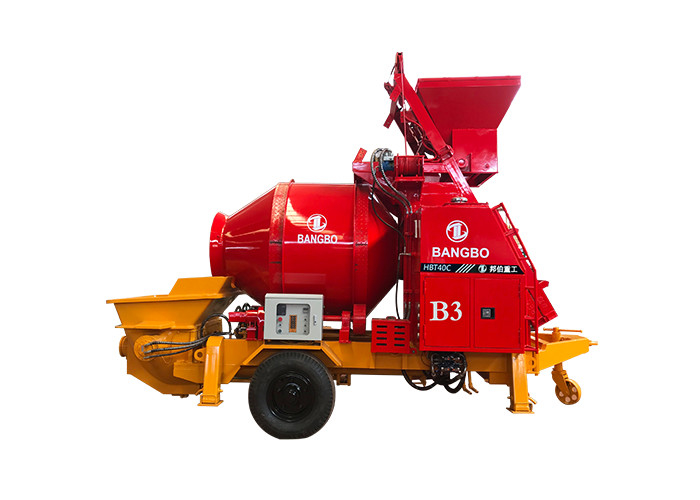

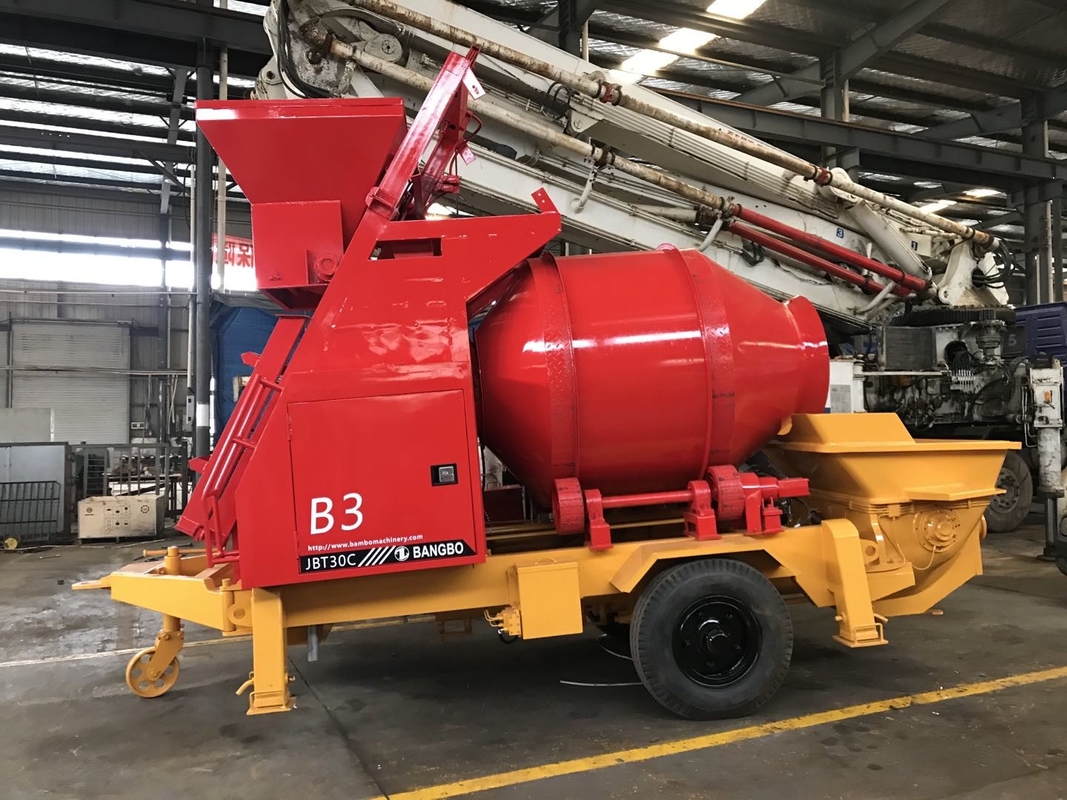

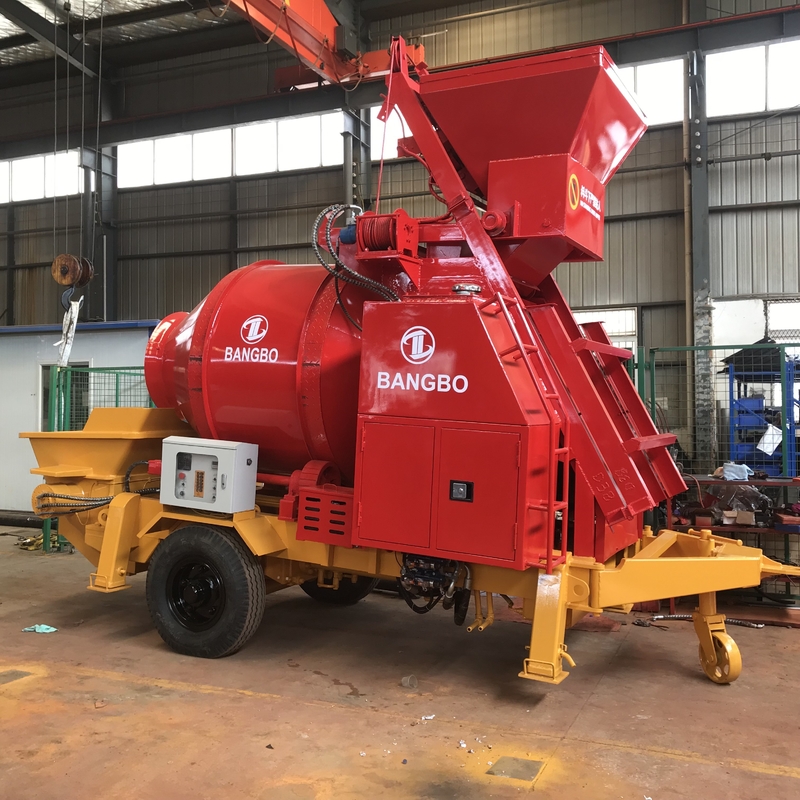

| PRODUCTION NAME | B3 Diesel Concrete Mixer Pump |
||
| TECHNICAL | PARAMETER | ||
| TYPE | DIESEL | ||
| DISTRIBUTE VALVE | "S" VALVE | ||
| DIESEL BRAND | WEICHAI | ||
| COOLING FORM | WATER COOLING | ||
| POWER | KW | 72 | |
| MAX THEROTIC OUTPUT | M3/H | 30 | |
| MAX THEROTIC DISTANCE | HORIZONTAL | M | 200 |
| VERTICAL | M | 70 | |
| MAX DIA.OF AGGREGATES | COBBLE | MM | 50 |
| MACADAM | MM | 40 | |
| MAIN HYD. PUMP BRAND | SET | KAWASAKI | |
| MAIN HYD. PUMP DISP. | ML/R | 112.00 | |
| MAIN HYD.PRESSURE | BAR | 320.00 | |
| MAX PUMPING DISCHARGE PRESSURE | BAR | 80 | |
| MIXER ROTARY SPEED | R/M | 15 | |
| MAIN CYLINDER | MM | 100/70 | |
| DELIVERY CYLINDER | MM | 200 | |
| OIL TANK CAPACITY | L | 170 | |
| OUTLET OPENING DIAMETER | MM | 180 | |
| INNER DIA OF DELIVERY PIPE | MM | 125 | |
| LIFTING HOPPER CAPACITY | L | 450 | |
| DRUM MIXER MODEL | L | JS500 | |
| CAPACITY OF DISCHARGE | L | 800 | |
| DIMENSION(L*W*H) | MM | 5500*2000*3600 | |
| WEIGHT | KG | 5900 | |
| QUANTITY IN 20FT CONTAINER | SET | 1 | |
Q: What is your main products?
A: Truck-mounted concrete pump, Concrete pump truck,Concrete line pump, Concrete mixer truck, Concrete pump spare parts, Crane and Lubricate Oil.
Q: How is the quality of your products?
A: We have more than 10 years of repairing experience on concrete machines. According to the national and international standards, all of our machines are inspected and maintained carefully and strictly by our skillful workers , we will test each equipment until it works excellently before delivery. We guarantee that every machine we delivery to our customers are in good performance and high quality.
Q: How is the price?
A: We are specialized in refurbishing concrete machines ,and have lots of customers allover the world with our best price, we can give you a lower price because of our primary source.
Q: Will you provide after-sale service?
A: Yes. The warranty of our new machines is 12 months, and used ones are1 month, other than that we have a professional after-sale service team to solve your problems thoroughly and promptly.
Q: How about your service of the concrete pump spare parts?
A: We are dedicated to provide our clients concrete pumps spare parts with the highest quality,exact fitness and fast deliveries and services. Customers are guaranteed that once they submit the spare parts
Request or products name list to me,the requirement will be handled quickly and appropriately.
Our products are sold all over the world, you can rest assured.
