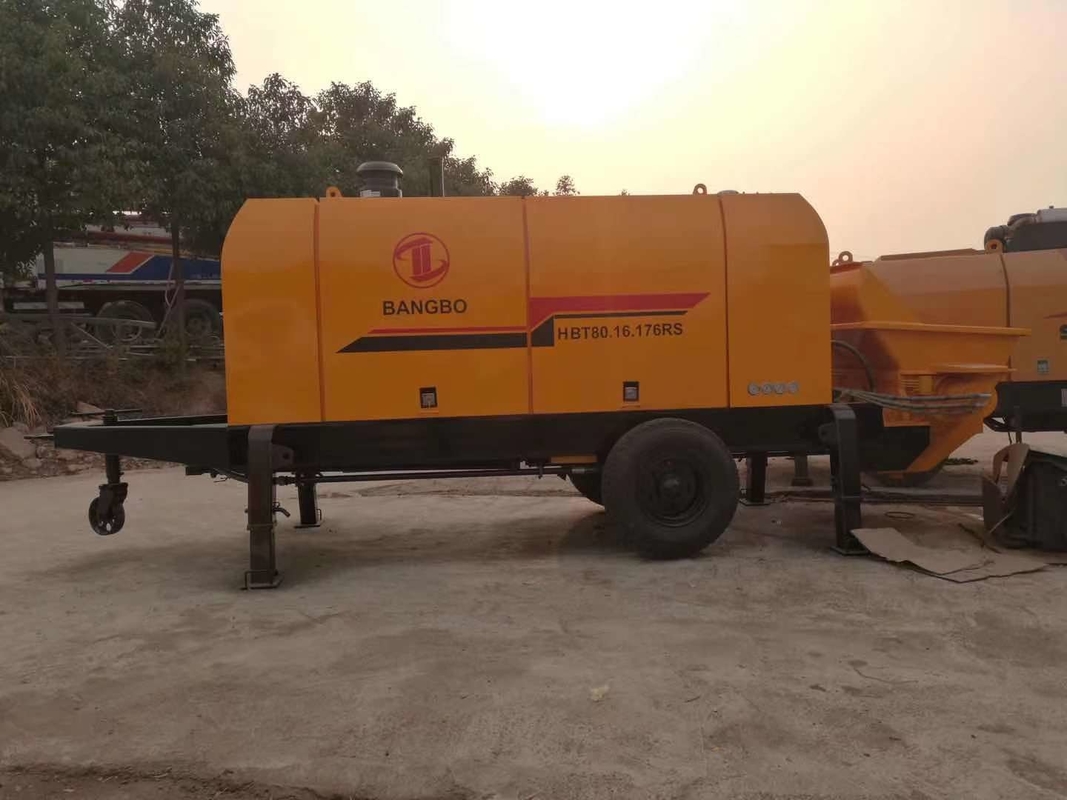

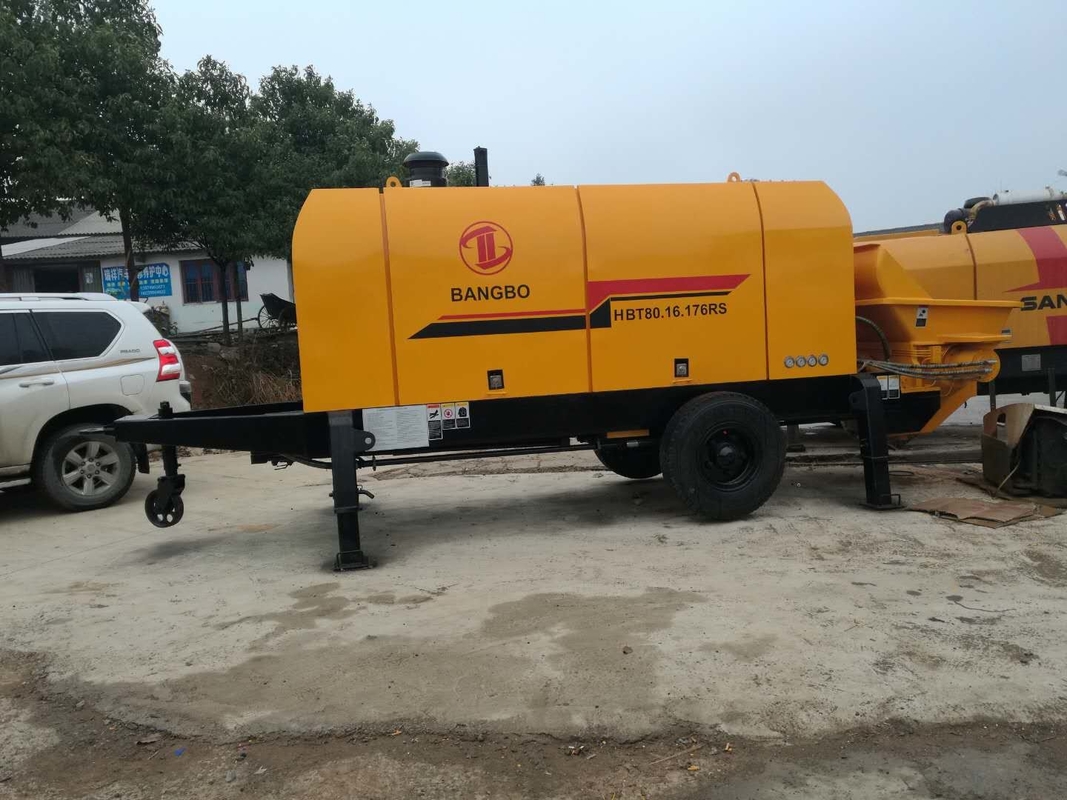

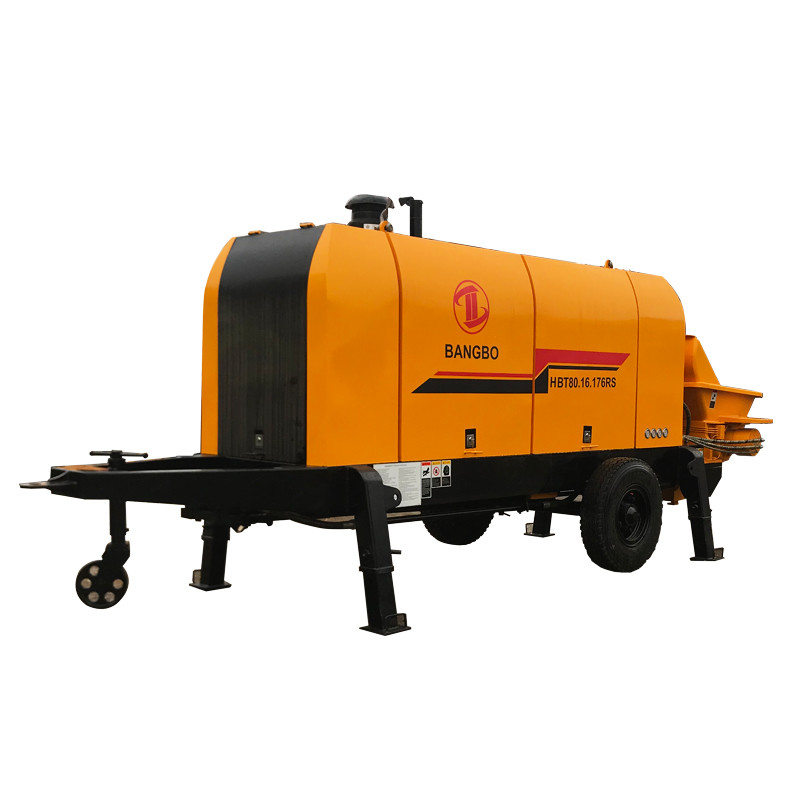

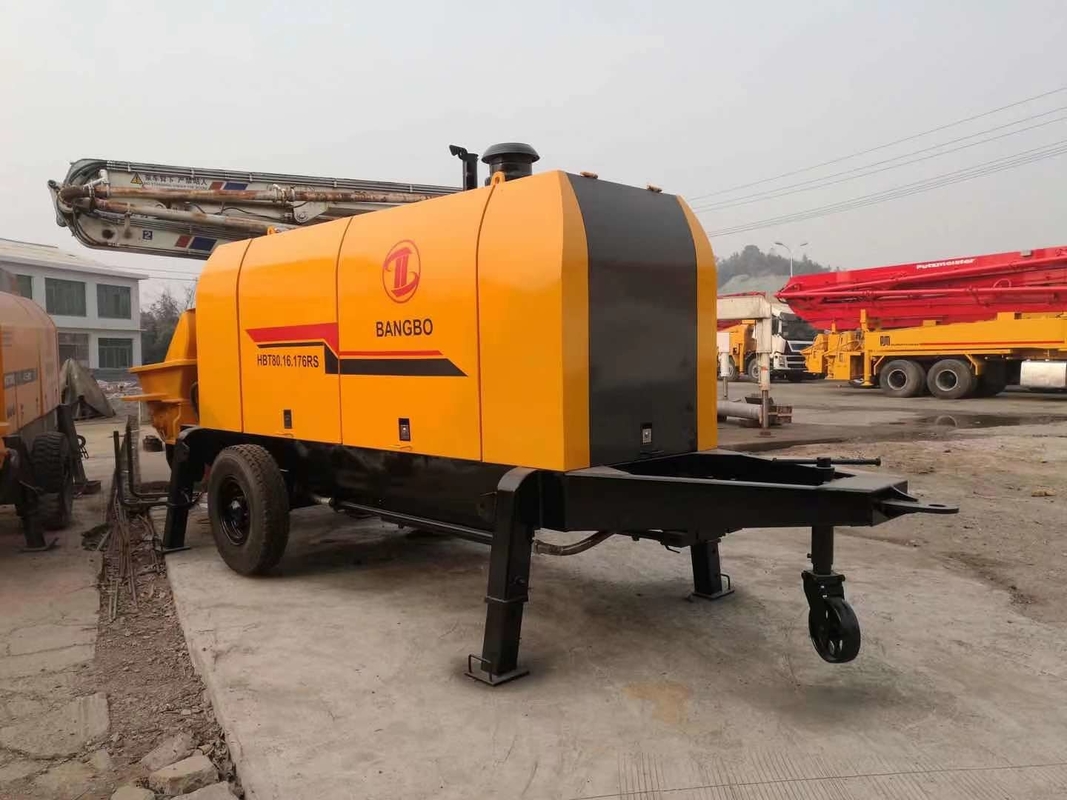

176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange

176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange

  • High Light

    130 Meter 176KW New Concrete Pump

    ,

    130m 176kw New Concrete Pump

    ,

    130m 176kw concrete pouring pump

  • Engine Type
    Diesel
  • Theoretical Output
    80 CBM PER HOUR
  • Max Pressure
    16MPa
  • Engine Rated Power/speed
    176/2300 KW/rpm
  • Max. Vertical Conveying Distance
    130METER
  • Max. Horizontal Conveying Distance
    400METER
  • Total Power
    176kw
  • Made Year
    2021
  • Total Weight
    7500 Kg
  • Dimensions(L*W*H)
    6900*2000*2700mm
  • Place of Origin
    China
  • Brand Name
    BANGBO
  • Certification
    ISO90001.SAE
  • Model Number
    HBT80.16.176RS
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    RORO ship, Cargo bulk ship
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    10 units per month

176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange

Little Hour 80M3/H Stationary Cement Pump New Concrete Pump In Truck

Benefits & features



Concrete trailer pump is a set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. Reliability and stability is guaranteed by automatic engine regulation.


1) Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2) Convey all kinds of engineering construction in the plain concrete, fiber concrete.
3) Conveying or injection of refractory and thermal insulation material;
4) Conveying or jet of greening soil on the construction of ecological environment;
5) Conveying or injection of plain concrete and fiber concrete for all kinds of engineering construction.



Technical Parameters
Pump Model
HBT80.16.176RS
Engine type
Diesel type
Distribution Valve
S-valve
Theoretical output
90m3/h
Max Pressure
18Mpa
Engine Rated Power
199kw
Rated Speed
2300r/m
Outlet opening Diamater
180MM
Engine brand
WeiChai
Max Hprizontal Distance
600
Max Vertical Distance
220
Hopper volume*feeding height
800*1400
Maximum aggregate size
Cobble:50, macadam:40
Weight
7500kg
Dimensions(L*W*H)
6900*2000*2700 mm

concrete pump concrete pump concrete pump concrete pump concrete pump concrete pump concrete pump concrete pump concrete



176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange 0176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange 1176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange 2176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange 3176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange 4176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange 5176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange 6



176KW 130 Meter New Concrete Pump , Concrete Pouring Pump Orange 7

1: What kind terms of payment can be accepted?

A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted

2: What certificates are available in Machinery?

A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,

3: What about the delivery time?

A: 7-20 days after receiving the deposit.

4: What about the warranty time?

A: 12 months after shipment or 2000 working hours, whichever occuts first.

5. What about the Minimum Order Quantity?

A: The MOQ is 1 pcs
