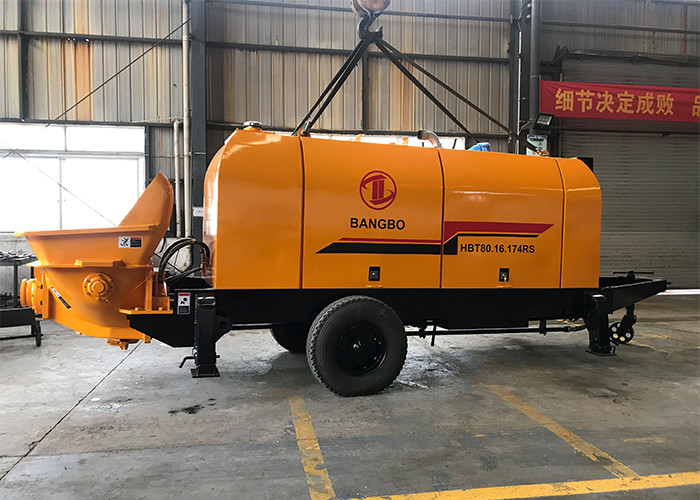

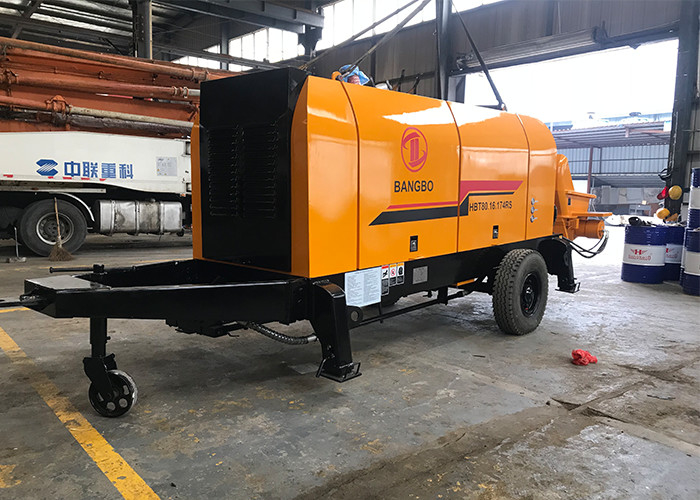

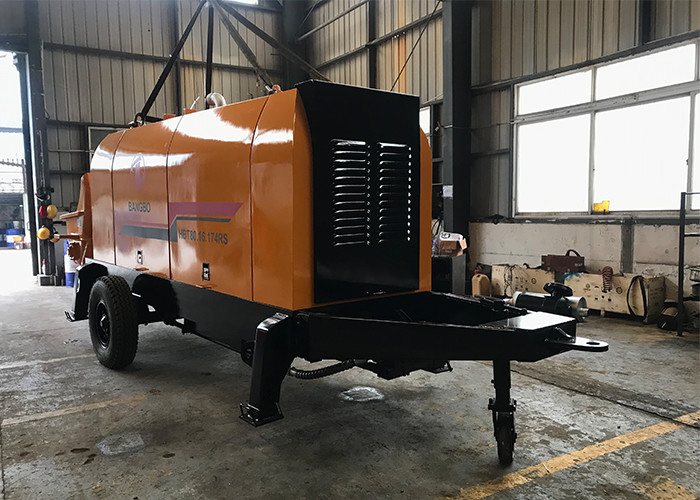

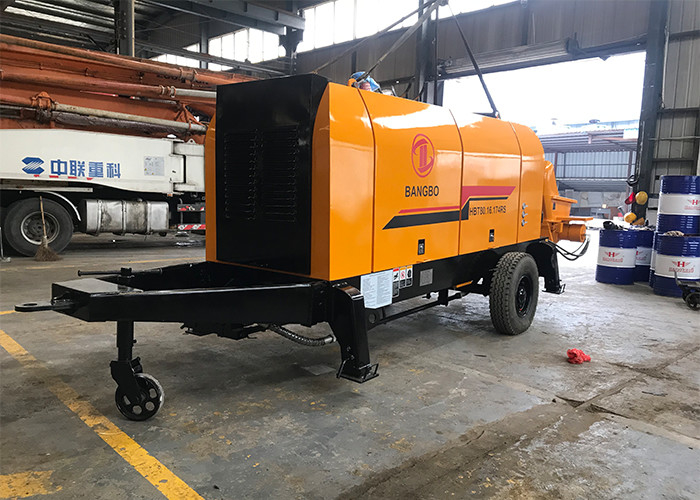

130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange

130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange

  • High Light

    130M concrete pump machine

    ,

    80M3/H concrete pump machine

    ,

    80M3/H hydraulic concrete pump

  • Engine Type
    Diesel
  • Theoretical Output
    80 Cubic
  • Max Pressure
    16MPa
  • Engine Rated Power/speed
    176/2300 KW/rpm
  • Max. Vertical Conveying Distance
    130M
  • Max. Horizontal Conveying Distance
    400M
  • Total Power
    176kw
  • Made Year
    2021
  • Total Weight
    7500 Kg
  • Dimensions(L*W*H)
    6900*2000*2700mm
  • Place of Origin
    China
  • Brand Name
    BANGBO
  • Certification
    ISO90001.SAE
  • Model Number
    HBT80.16.176RS
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    RORO ship, Cargo bulk ship
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    10 units per month

130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange

Little Hour 80M3/H Stationary Cement Pump New Concrete Pump In Truck

Benefits & features



Concrete trailer pump is a set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. Reliability and stability is guaranteed by automatic engine regulation.


1) Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2) Convey all kinds of engineering construction in the plain concrete, fiber concrete.
3) Conveying or injection of refractory and thermal insulation material;
4) Conveying or jet of greening soil on the construction of ecological environment;
5) Conveying or injection of plain concrete and fiber concrete for all kinds of engineering construction.



Concrete trailer pump is a set of mechanical, electrical and hydraulic technology as one, with reliable performance of smooth operation and strong pumping capability. Reliability and stability is guaranteed by automatic engine regulation.


1) Convey floor heating lightweight foamed cement, mortar, fine aggregate concrete.
2) Convey all kinds of engineering construction in the plain concrete, fiber concrete.
3) Conveying or injection of refractory and thermal insulation material;
4).Conveying or jet of greening soil on the construction of ecological environment;
5). Conveying or injection of plain concrete and fiber concrete for all kinds of engineering construction.



Technical Parameters
Pump Model
HBT80.16.176RS
Engine type
Diesel type
Distribution Valve
S-valve
Theoretical output
90m3/h
Max Pressure
18Mpa
Engine Rated Power
199kw
Rated Speed
2300r/m
Outlet opening Diamater
180MM
Engine brand
WeiChai
Max Hprizontal Distance
600
Max Vertical Distance
220
Hopper volume*feeding height
800*1400
Maximum aggregate size
Cobble:50, macadam:40
Weight
7500kg
Dimensions(L*W*H)
6900*2000*2700 mm

130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange 0

130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange 1130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange 2130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange 3130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange 4130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange 5130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange 6



130M 80M3/H Concrete Pump Machine Stationary Hydraulic Orange 7

Q: What is your oil pump brand?

A: Germany Rexroth or Korea Kawasaki.



Q: The motor power is the electrical or diesel?

A: Both type. The power of electric type apply to 330V 50Hz.



Q: How about guarantee period?

A: 1 year for non-easy worn parts. We strictly follow the warranty terms.



Q: What is the payment terms?

A: We accept L/C, T/T. 30% by T/T in advance, 70% by T/T before dispatching from factory.



Q: Maintenance and After-sales service?

A: There are professional overseas after-sales technicians.
