8Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range

8Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range

  • High Light

    8Mpa New Concrete Pump

    ,

    62kw New Concrete Pump

    ,

    62kw mixer with pump

  • Engine Type
    Diesel
  • Theoretical Output
    30 M3/h
  • Max Pressure
    8Mpa
  • Oil Tank Capacity
    170 Liter
  • Max. Vertical Conveying Distance
    100Meter
  • Max. Horizontal Conveying Distance
    300Meter
  • Total Power
    62kw
  • Made Year
    2021
  • Total Weight
    5100 Kg
  • Dimensions(L*W*H)
    5100* 2200 *3100mm
  • Place of Origin
    China
  • Brand Name
    BANGBO
  • Certification
    ISO90001.SAE
  • Model Number
    JBT30-8008B3
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    RORO ship, Cargo bulk ship
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    10 units per month

8Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range

New Concrete Mixer With Pump/Concrete Pump Truck Rental Rates

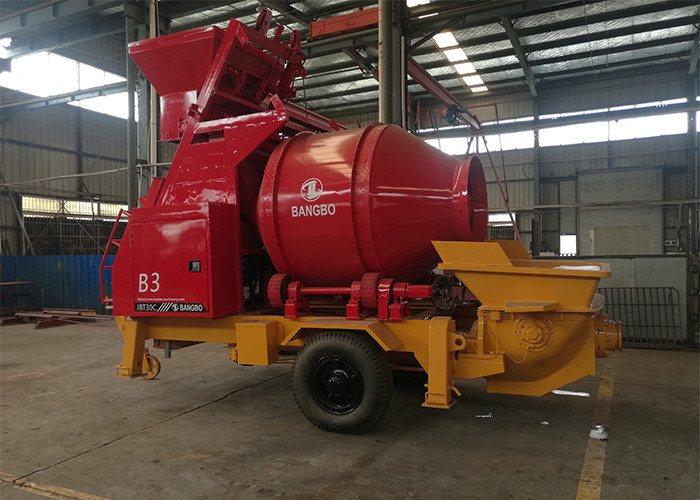

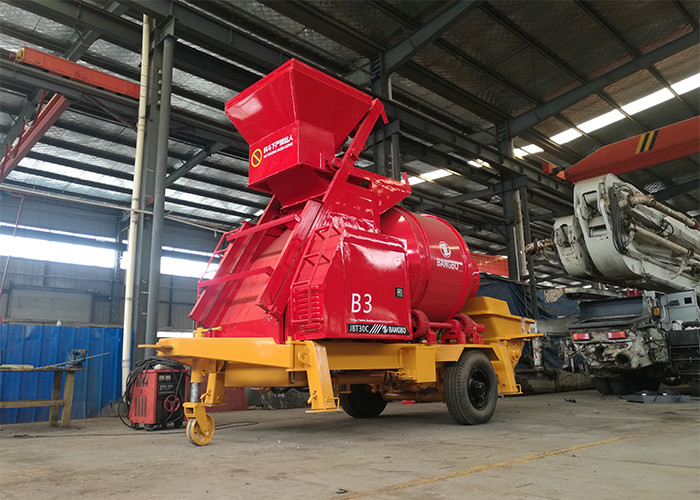

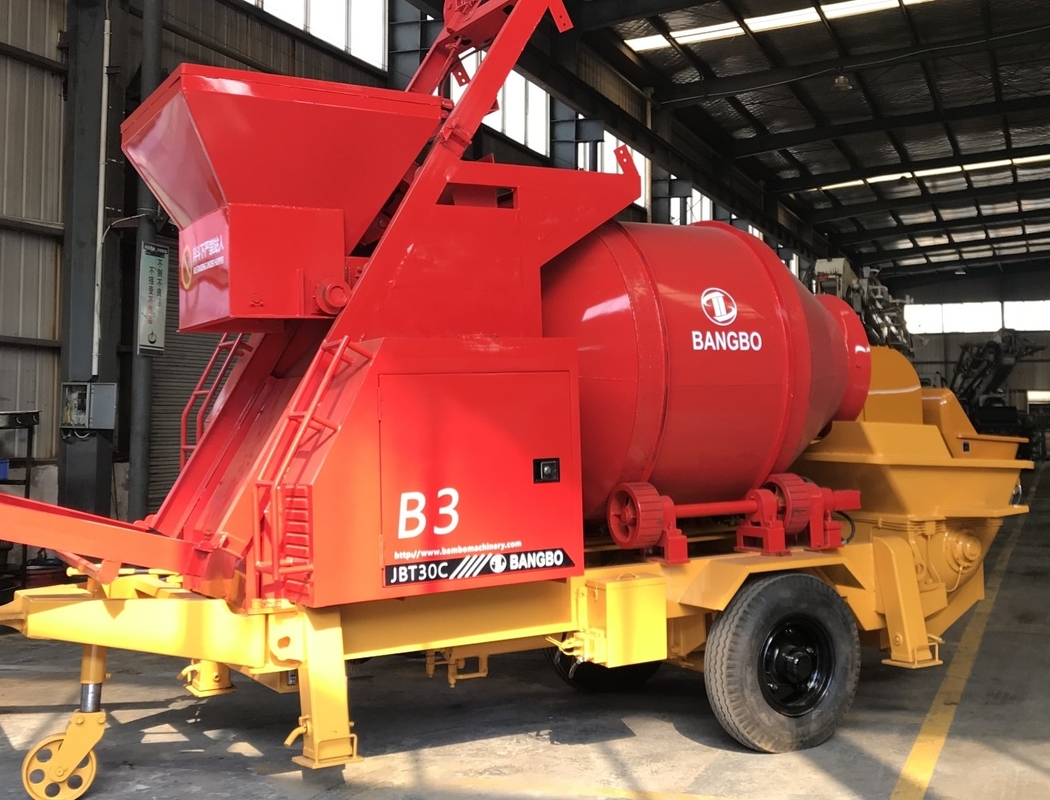

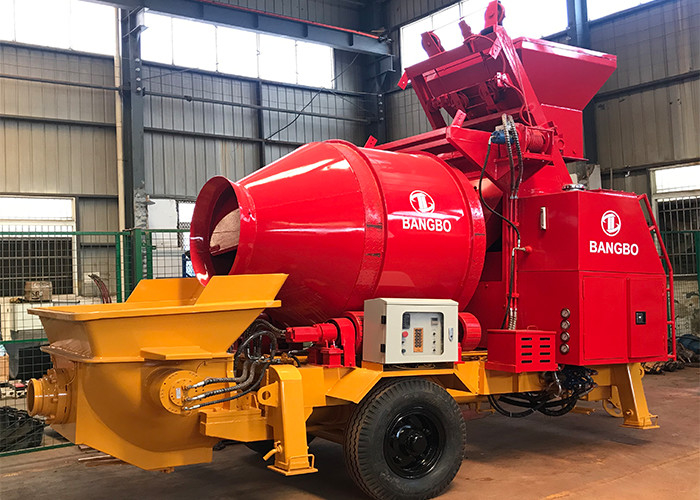

Product Introduction



Concrete Mixer With Pump, it is widely used to mixing and pumping the concrete for construction project. What's more, mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc



concrete mixer pump construction operation system can be used in all automated, all material mixing, high pressure pumping as one. Double cylinder hydraulic pumping system, hydraulic system greatly enhance the stirring concrete pump overall reliability and ensure pump strive foolproof work under harsh conditions.



Items
JBT30
JBT40
DJBT30
DJBT40





Transfer
Pump
Capacity
30m3/h
40m3/h
30m3/h
40m3/h
Pumping pressure
8Mpa
10Mpa
9Mpa
10Mpa
Max. conveyor height
100m
110m
140m
160m
Distribution cylinder
The S tube placed valve
Motor power
62kw
62kw
62kw
82kw
Main oil pump capacity
71ml/min
112ml/min
71ml/min
112ml/min
Hopper capacity
550L
550L
550L
550L
Max. aggregate size
20/30mm
30/40mm
20/30mm
20/30mm

Total
Dimension
5100* 2200 *3100mm
5100* 2200 *3100mm
4800x2200x
2800mm
6000x2200x
2800mm
Weight
5100 kg
5100 kg
5500kg
6000kg





8Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range 0

8Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range 18Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range 2

Main Oil Pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.

8Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range 38Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range 48Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range 5

Packing and Delivery of Concrete Mixer with Pump:
All Concrete Mixer and pump machine and machine part is loading in one feet container

8Mpa 62kw New Concrete Pump Mobile Heavy Duty Wide Work Range 6


Q1: What is the capacity of your concrete mixer pump?
A: We have 30m-40m3/h.

Q2: How long and high you want to pump?
A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.

Q3: The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.

Q4: How to guarantee customers get the goods smoothly after they pay?
A: We joined the trade assurance. you can place the order by trade assurance,and the deposit will given to Alibaba. if we don't delivery products on time, the deposit will return to you.
