80CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump

80CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump

  • High Light

    16MPa mini concrete mixer with pump

    ,

    ISO90001 80CBM/H mini concrete mixer

    ,

    80CBM/H Stationary Concrete Pump

  • Engine Type
    Diesel
  • Theoretical Output
    80 Cubic PER HOUR
  • Max Pressure
    16MPa
  • Engine Rated Power/speed
    176/2300 KW/rpm
  • Max. Vertical Conveying Distance
    130M
  • Max. Horizontal Conveying Distance
    400M
  • Total Power
    176kw
  • Made Year
    2021
  • Total Weight
    7500 Kg
  • Dimensions(L*W*H)
    6900*2000*2700mm
  • Place of Origin
    China
  • Brand Name
    BANGBO
  • Certification
    ISO90001.SAE
  • Model Number
    HBT80.16.176RS
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    RORO ship, Cargo bulk ship
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    10 units per month

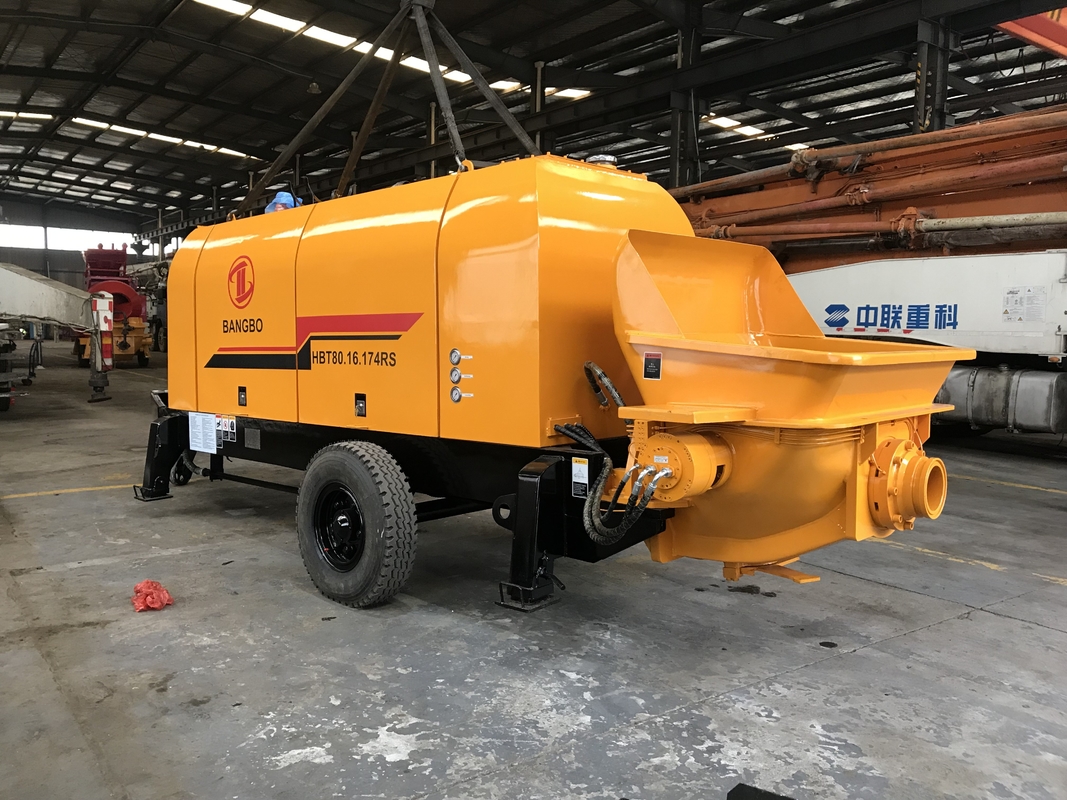

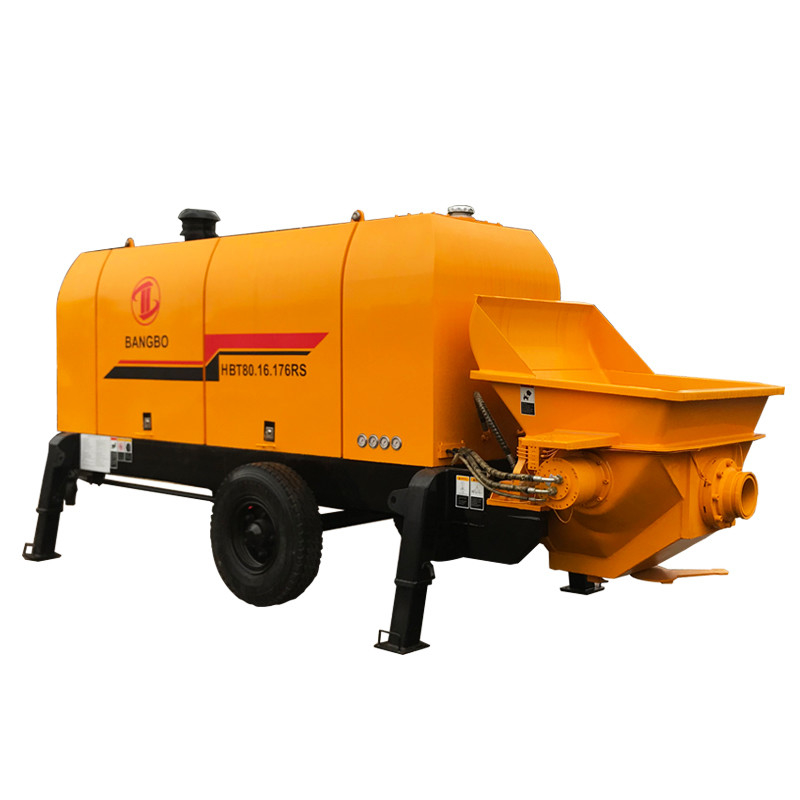

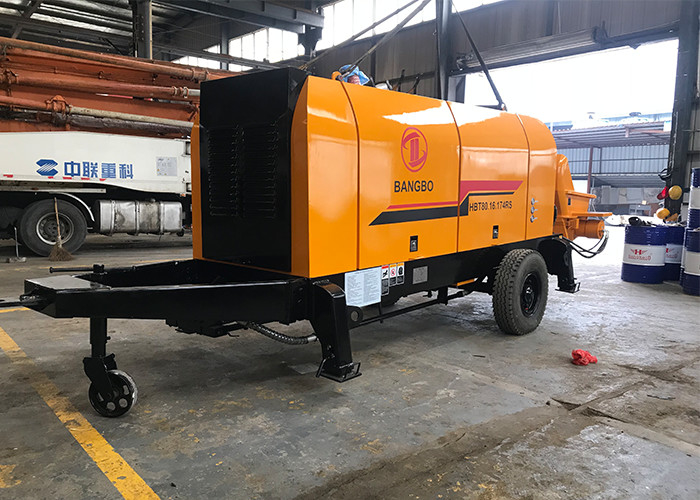

80CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump

Little Hour 80M3/H Stationary Cement Pump New Concrete Pump In Truck

Benefits & features


Efficient pump system



High-efficiency pumping technology
Adopt pressure difference sensing & reversing technology and main oil pump electric proportional control buffering technology to shorten the reversing time, optimize the
main oil cylinder and swing cylinder buffering & reversing time matching, and realize high-efficiency pumping.

Large-bore reversing cylinder

Adopt large-bore reversing cylinder, making the reversing powerful, and perfectly avoid
pipe blocking.

Large-power mixing motor
Forced feeding by large-displacement and large-torque steel ball motor. Mix normally when there is aggregate difference and the hopper is heightened. That will prevent the mixing motor from getting stuck and improve the aggregate absorbing performance.

New-type hopper
Optimize the hopper’s inner cavity, improve the aggregate absorbing efficiency, and guard against aggregate inapplicability, and easily handle high-difficulty concrete.

Technical Parameters
Pump Model
HBT80.16.176RS
Engine type
Diesel type
Distribution Valve
S-valve
Theoretical output
90m3/h
Max Pressure
18Mpa
Engine Rated Power
199kw
Rated Speed
2300r/m
Outlet opening Diamater
180MM
Engine brand
WeiChai
Max Hprizontal Distance
600
Max Vertical Distance
220
Hopper volume*feeding height
800*1400
Maximum aggregate size
Cobble:50, macadam:40
Weight
7500kg
Dimensions(L*W*H)
6900*2000*2700 mm



80CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump 0

80CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump 180CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump 280CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump 380CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump 480CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump 580CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump 6



80CBM/H 16MPa Mini Concrete Mixer With Pump , Stationary Concrete Pump 7

1. Are you manufacturer and what is your Brand?

Yes, we are professional manufacturer on concrete machines, and our Brand is ‘BANGBO’



2. What is your main product?

Trailer concrete pumps/concrete mixer pump/truck concrete pump/truck concrete pump boom/Wet shotcrete machine/Concrete placing boom/concrete mixer truck/concrete mixing plant



3. What is your MOQ?

One Set is ok for your trail order



4. What is your price?

Please tell us the products model and quantity required, as well as your email, our sales responsible will share with you the best price.



5. What is the delivery time?

Most of the order will within 15days, sometimes depend on your quantity and our present products plan.
