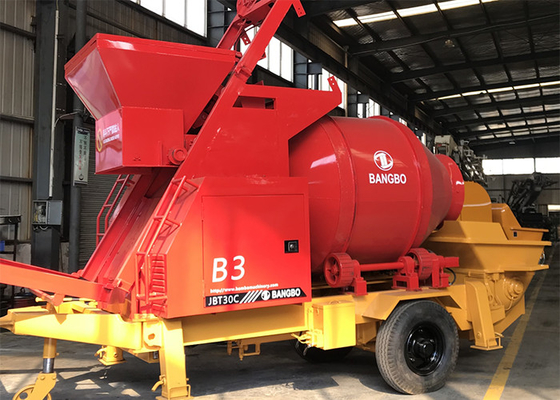

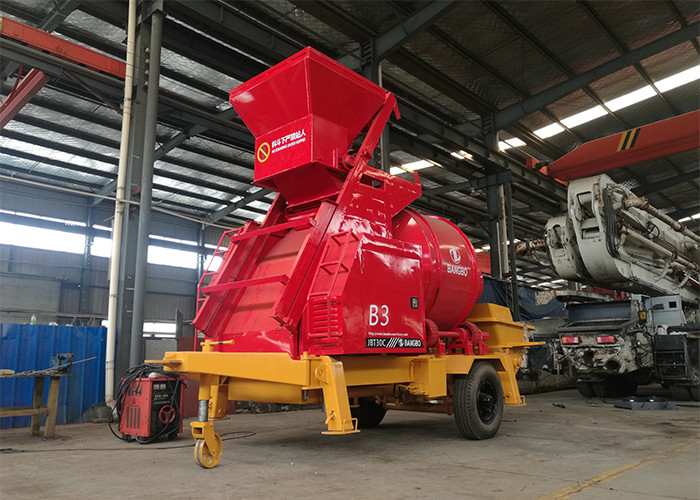

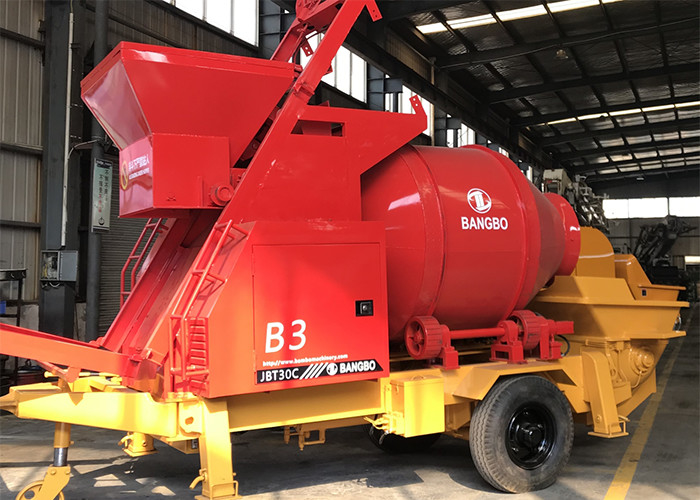

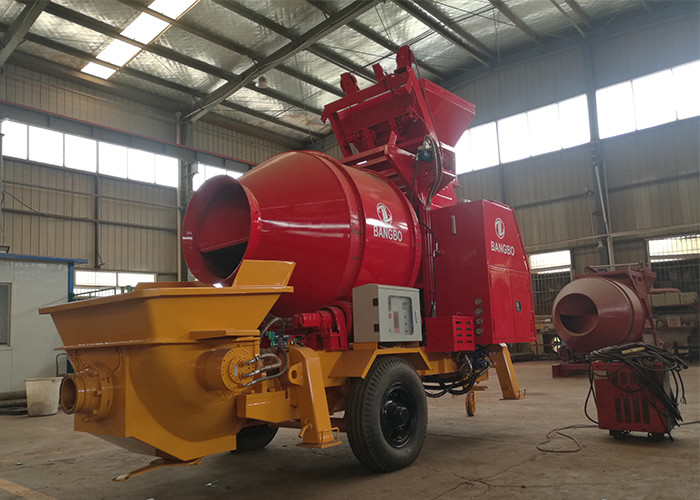

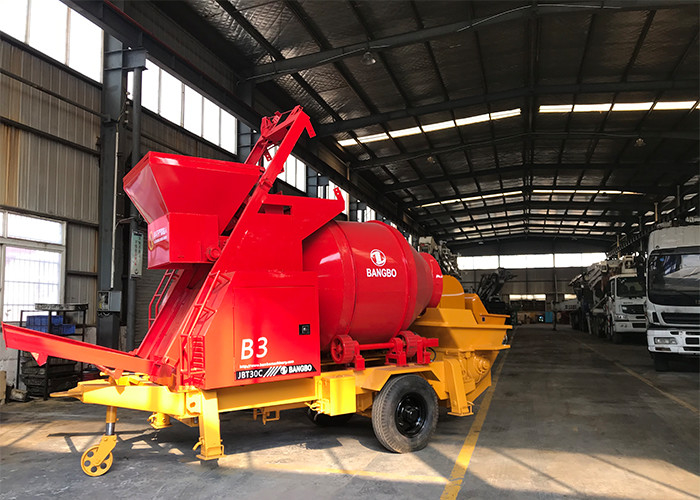

SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction

SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction

Products - New Concrete Pump
  • High Light

    SAE concrete mixer and pumping machine

    ,

    100 Meters concrete mixer and pumping machine

    ,

    SAE concrete mixer equipment

  • Engine Type
    Diesel
  • Theoretical Output
    30 Cubic Per Hour
  • Max Pressure
    8 Mpa
  • Oil Tank Capacity
    170 Liter
  • Max. Vertical Conveying Distance
    100 Meters
  • Max. Horizontal Conveying Distance
    300Meter
  • Total Power
    62kw
  • Made Year
    2021
  • Total Weight
    5100 Kg
  • Dimensions(L*W*H)
    5100* 2200 *3100mm
  • Place of Origin
    China
  • Brand Name
    BANGBO
  • Certification
    ISO90001.SAE
  • Model Number
    JBT30-8008B3
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    RORO ship, Cargo bulk ship
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    10 units per month

SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction

  • SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction
  • SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction
  • SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction
  • SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction
  • SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction
Get Price Contact Now
Construction Used Concrete Mixer Truck With Pump Diesel New Concrete Pump

Diesel Motor Power
For motors, we adopt famous brands.
For diesel power, we adopt Germany Deutz, Weichai, Yuchai.

Main Oil Pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Control System
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.



Hydraulic Oil Tubes
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the
system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are
guaranteed.

Lubrication System
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which
can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee
the system reliability.
Item Unit JBT30-8008B3
Concrete delivery capacity m3/h 30
Maximum outlet pressure MPa 8
Maximum horizontal delivery distance m 300
Maximum vertical delivery distance m 100
Maximum aggregate size mm ≤30
Filling height mm 1150
Pumping system oil pressure(safety valve setting) Mpa 33
concrete cylinder specification: bore × stroke mm Φ180×1000
conveying inner diameter mm Φ125/ 150
The maximum pressure of the hydraulic system MPa 30
Hydraulic oil tank L 300
Main motor power kw 82
Dimensions (L × W × H) mm 5100* 2200 *3100
Weight kg

5100







SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction 0



SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction 1SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction 2
Main Oil Pump
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.

SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction 3SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction 4SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction 5



SAE Approval 100 Meters Concrete Mixer And Pumping Machine For Construction 6


Q1: What is the capacity of your concrete mixer pump?
A: We have 30m-40m3/h.

Q2: How long and high you want to pump?
A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.

Q3: The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.

Q4: How to guarantee customers get the goods smoothly after they pay?
A: We joined the trade assurance. you can place the order by trade assurance,and the deposit will given to Alibaba. if we don't delivery products on time, the deposit will return to you.
