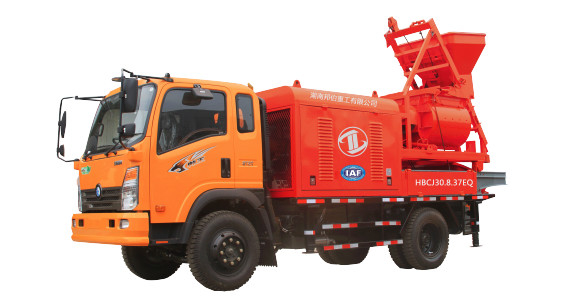

Concrete Mixer pump also known as: truck-mounted agitator pump
Product introduction: Concrete mixer pump is a special concrete machine integrated Automatic feeding,,auto-mixing and pumping function. It has the particularity of convenient maintenance, fast transition, high work efficiency, and labor saving. As know as adopts the national IV emission standard,with sleeping berths, and strong inter-cooled supercharging power.
Scope of application:
1. Small construction projects, including civil buildings, rural construction, and concrete pavement in the town
2. Mine, highway, railway, tunnel and culvert engineering.
3. Slope care, small and reservoirs, and water conservancy and hydro-power projects.
4. Other small and medium-sized outdoor or field operations.
| Technical Parameters | |
| Model number | HBCJ40.8.62RG |
| Made year | 2020 |
| Power Type | Diesel |
| Drum mixer volume | JS500 |
| Max theoretical Concrete Output | 40 m3/h |
| Max Mixing volume | 30 m3/h |
| Engine power | 72 kw |
| Max Concrete Pressure | 8 Mpa |
| Horizontal delivery distance | 260 m |
| Vertical delivery distance | 70 m |
| Distribute valve | S valve |
| Cooling form | water/air cooling |
| Incharger hopper volume/filling height | 650*1080 mm |
| Max dia. of aggregates(cobble/macadam) | 40/30mm |
| Outlet opening diameter | 180mm |
| Inner dia of delivery pipe | 125mm |

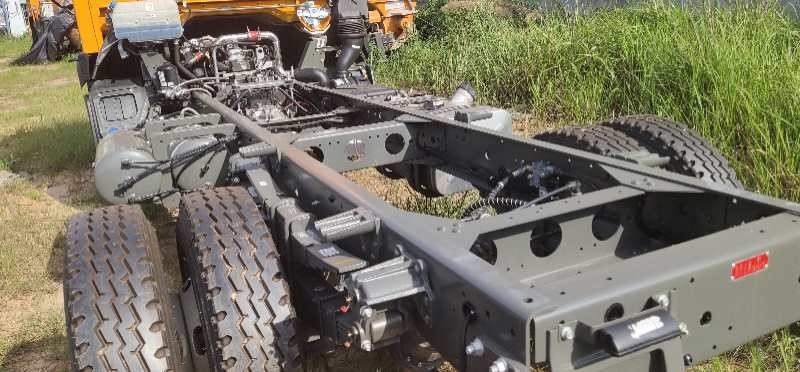

| Chassis model | SINOTRUCK-KING |
| Engine brand | Xichai |
| Power | 97.5KW |
| Displacement | 3857ml |
| Dimension | 77200*2380*3280 mm |
| Weight | 13580kg |
| All spare parts | 1000kg |
Q: What is your main products?
A: Truck-mounted concrete pump, Concrete pump truck,Concrete line pump, Concrete mixer truck, Concrete pump spare parts, Crane and Lubricate oil.
Q: How is the quality of your products?
A: We have more than 10 years of repairing experience on concrete machines. According to the national and international standards, all of our machines are inspected and maintained carefully and strictly by our skillful workers , we will test each equipment until it works excellently before delivery. We guarantee that every machine we delivery to our customers are in good performance and high quality.
Q: How is the price?
A: We are specialized in refurbishing concrete machines ,and have lots of customers allover the world with our best price, we can give you a lower price because of our primary source.
Q: Will you provide after-sale service?
A: Yes. The warranty of our new machines is 12 months, and used ones are1 month, other than that we have a professional after-sale service team to solve your problems thoroughly and promptly.
Our products are sold all over the world, you can rest assured.
