ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank

ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank

  • High Light

    ISO90001 concrete pouring machine

    ,

    170Liter concrete pouring machine

    ,

    170Liter ISO90001 concrete mixer hydraulic pump

  • Engine Type
    Diesel
  • Theoretical Output
    30 CBM Per Hour
  • Max Pressure
    8Mpa
  • Oil Tank Capacity
    170Liter
  • Max. Vertical Conveying Distance
    100Meter
  • Max. Horizontal Conveying Distance
    300Mmeter
  • Total Power
    62kw
  • Made Year
    2021
  • Total Weight
    5100 Kg
  • Dimensions(L*W*H)
    5100* 2200 *3150mm
  • Place of Origin
    China
  • Brand Name
    BANGBO
  • Certification
    ISO90001.SAE
  • Model Number
    JBT30-8008B2
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    RORO ship, Cargo bulk ship
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    10 units per month

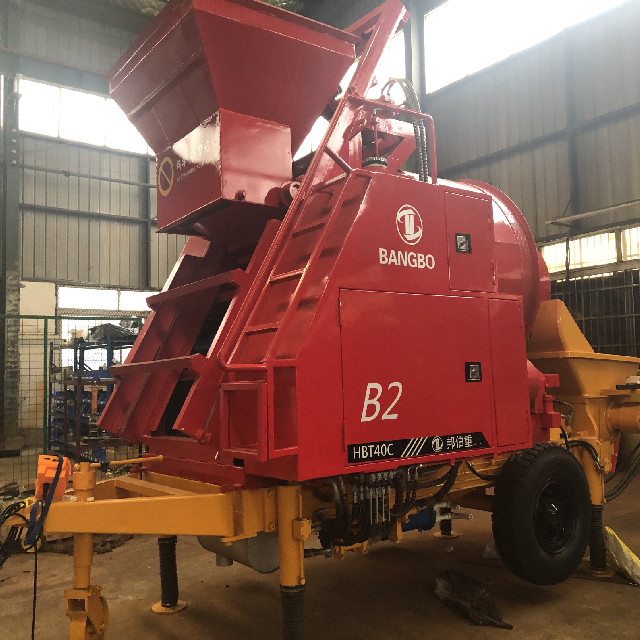

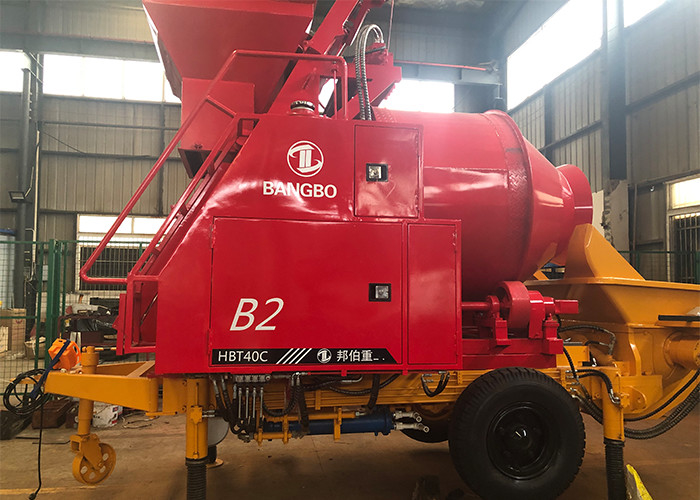

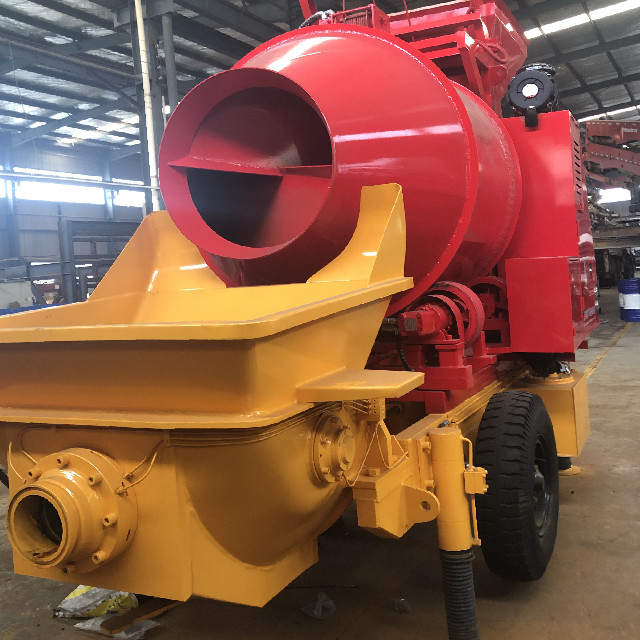

ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank

New Concrete Mixer With Pump/Concrete Pump Truck Rental Rates



BANGBO Concrete Mixer Pump Features

  • 1. Mixing and pumping of the perfect combination, to save weight and transportation space frame.
  • 2. high work efficiency.
    3. Save labor costs, reduce labor intensity.
    4. Smaller power, consider the carrying capacity of rural power grid.
    5. Simple operation, easy to use.
    6. Double cylinder hydraulic pumping system, capable of delivering crushed stone concrete, stable performance, safe and reliable.
    7. Long distance delivery.
PRODUCTION NAME B3 Diesel
Concrete Mixer Pump
TECHNICAL   PARAMETER
TYPE   DIESEL
DISTRIBUTE VALVE   "S" VALVE
DIESEL BRAND   WEICHAI
COOLING FORM   WATER COOLING
POWER KW 72
MAX THEROTIC OUTPUT M3/H 30
MAX THEROTIC DISTANCE HORIZONTAL M 200
VERTICAL M 70
MAX DIA.OF AGGREGATES COBBLE MM 50
MACADAM MM 40
MAIN HYD. PUMP BRAND SET KAWASAKI
MAIN HYD. PUMP DISP. ML/R 112.00
MAIN HYD.PRESSURE BAR 320.00
MAX PUMPING DISCHARGE PRESSURE BAR 80
MIXER ROTARY SPEED R/M 15
MAIN CYLINDER   MM 100/70
DELIVERY CYLINDER MM 200
OIL TANK CAPACITY L 170
OUTLET OPENING DIAMETER MM 180
INNER DIA OF DELIVERY PIPE MM 125
LIFTING HOPPER CAPACITY L 450
DRUM MIXER MODEL L JS500
CAPACITY OF DISCHARGE L 800
DIMENSION(L*W*H) MM 5500*2000*3600
WEIGHT KG 5900
QUANTITY IN 20FT CONTAINER SET 1


ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank 0

ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank 1ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank 2ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank 3ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank 4ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank 5ISO90001 Certified Portable Concrete Pouring Machine With 170Liter Tank 6

Q1: Are you trading company or manufacturer?

A: We are factory. We can design and manufacture products as customers' request.

Q2: How long is the warranty period ?
A: We offer 12 months warranty for the machine (main body) from the date of installation finished.
Q3: How long is your delivery time?

A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q4: What is your payment method?

A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union.
