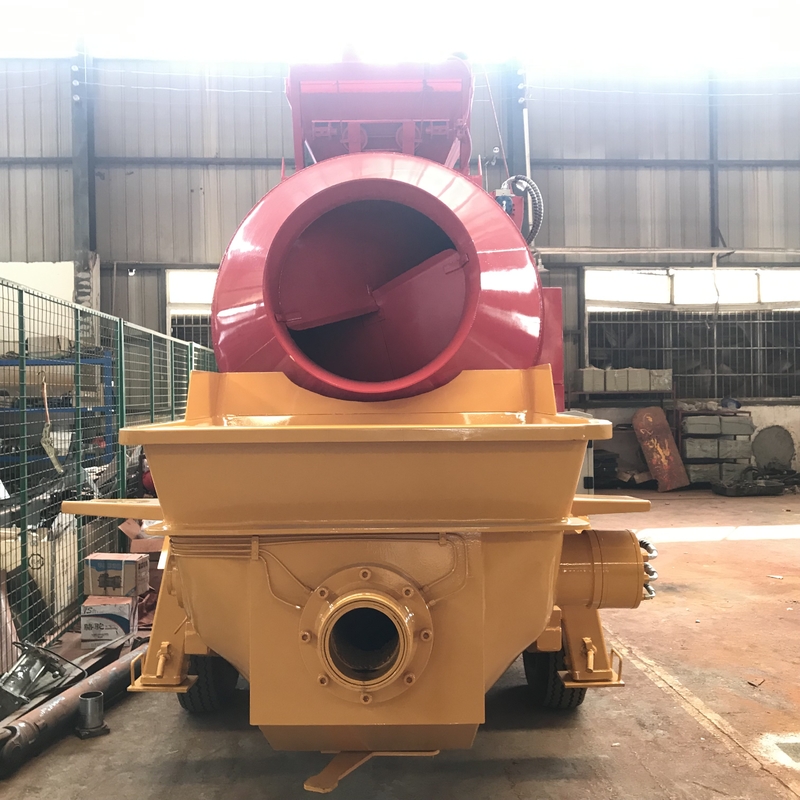

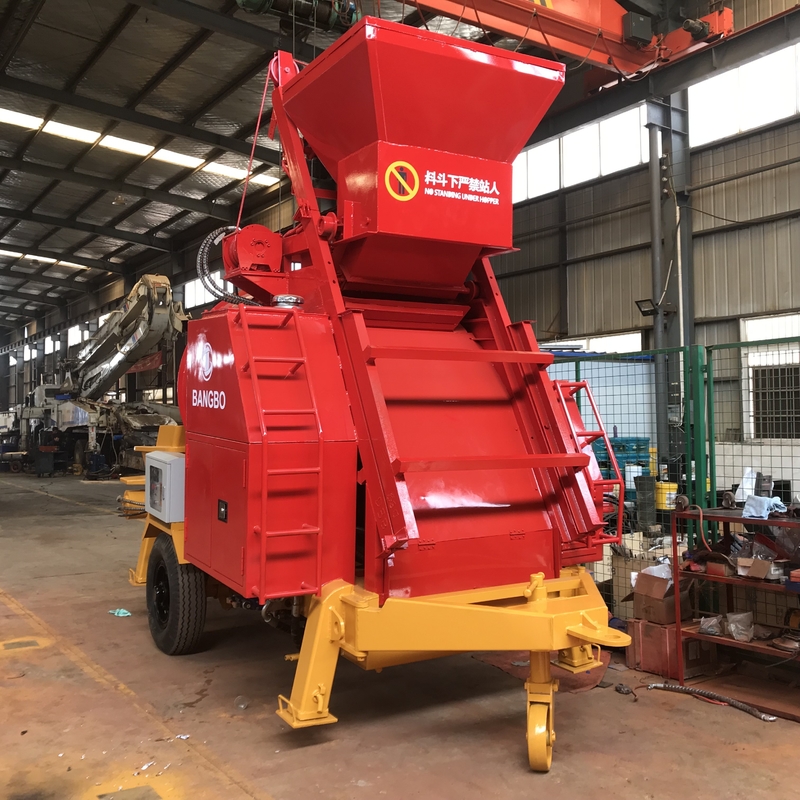

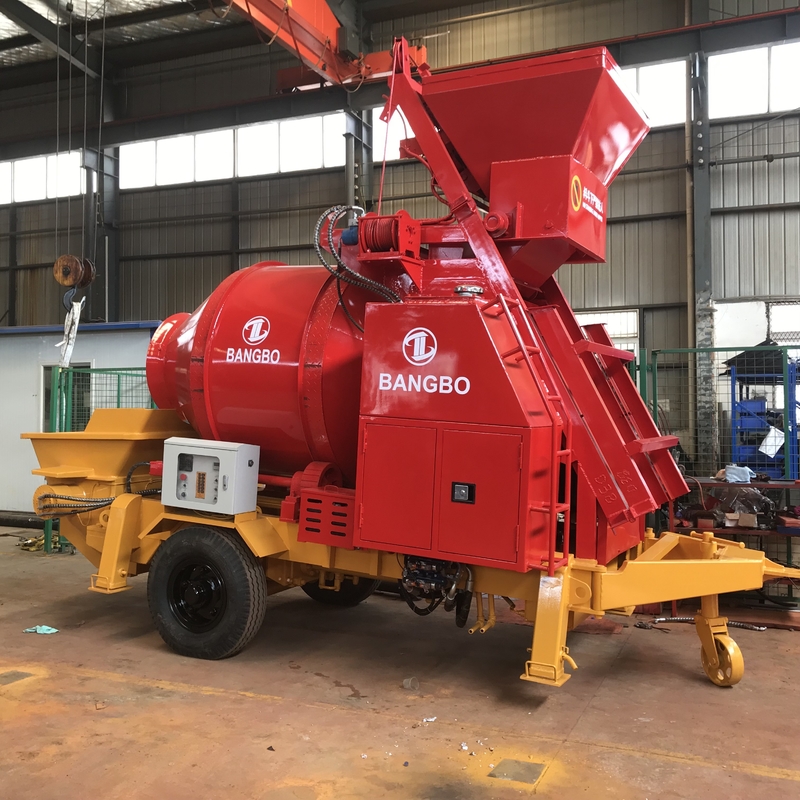

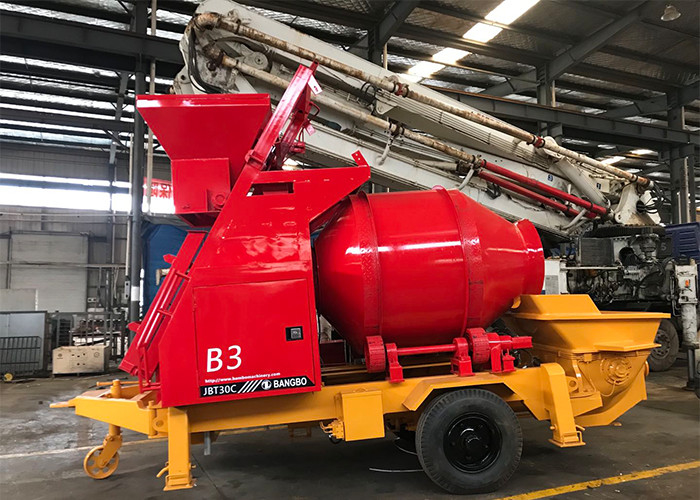

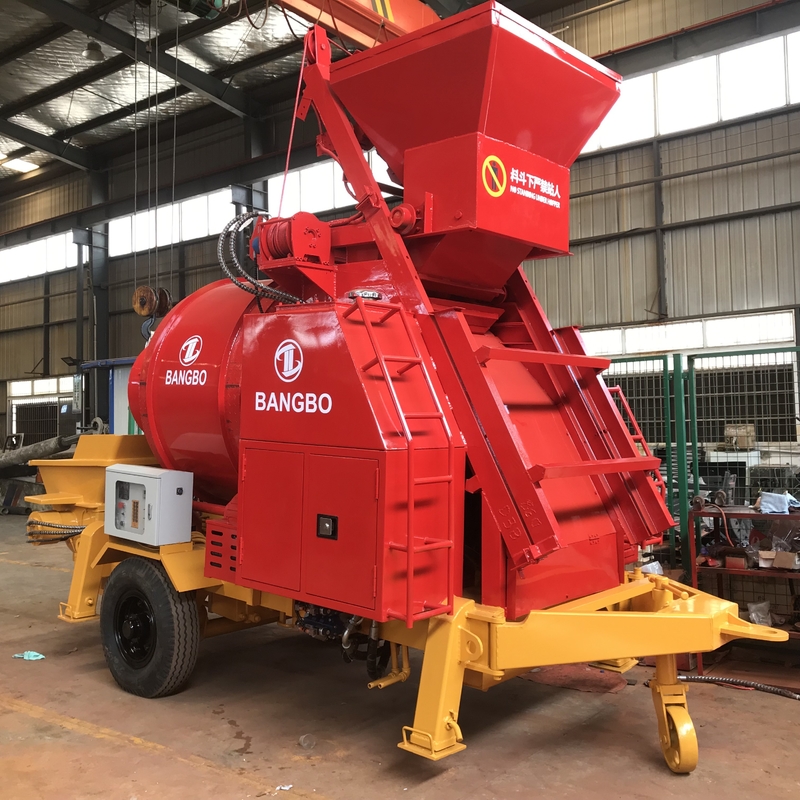

Techincal Parameter of BANGBO Concrete Mixer Pump
| DISTRIBUTE VALVE | S value |
| Theoretical output | 40 CBM per hour |
| Actual output | 25 CBM per hour |
| Max Pressure | 8Mpa |
| Delivery Cylinder | 200MM |
| Oil tank capacity | 170L |
| Drum rotary speed | 15r/m |
| Diameter of drum | 1440mm |
| Engine brand | weicai , cummins, can be customized. |
| Total Power | 62kw |
| Max dia.of aggregates | Cobble:40,macadam:30 |
| Outline dimension(L*W*H) | 5100*2200*3100 mm |
| Total weight | 5500 kg |
| Outlet opening Diamater | 180MM |
| Product Keywords | mixer machine 0.5m3,automatic concrete mixer,js500 concrete mixer |
PACKAGING & DELIVERY
Comply with export packaging requirements
1. Concrete mixer pump, trailer concrete pump etc small machinery in container. Spare parts wooden or steel box.
2. Concrete pump truck and concrete mixer truck etc equipment will be shipped by RORO ship,Bulk cargo ship or Flat rack.
Q: What is the use range of 40M3/H diesel agitator pumps?
A: suitable for 6-8 story building construction, road, bridge and small hydropower station projects.
Q: What is the operating voltage of the control system in V?
A: 24 v
Q: What number of lubricating oil is required?
A: 00# or 000#
Q: How to add material to concrete mixer pump?
A: Load materials by manual or by wheel loader. By wheel loader to improve working efficiency. Both is ok, it is no problem.
Q: How much diesel need to use per hour for concrete mixer pump?
A: Diesel consumption is about 15 liter per hour.
Our products are sold all over the world, you can rest assured.
