62kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility

62kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility

  • High Light

    62kw concrete pump with mixer machine

    ,

    30m3/H concrete pump with mixer machine

    ,

    62kw 30m3/H Diesel Concrete Pump

  • Engine Type
    Diesel
  • Theoretical Output
    30 M3/h
  • Max Pressure
    8Mpa
  • Oil Tank Capacity
    170 Liter
  • Max. Vertical Conveying Distance
    100M
  • Max. Horizontal Conveying Distance
    300M
  • Total Power
    62kw
  • Made Year
    2021
  • Total Weight
    5100 Kg
  • Dimensions(L*W*H)
    5100* 2200 *3100mm
  • Place of Origin
    China
  • Brand Name
    BANGBO
  • Certification
    ISO90001.SAE
  • Model Number
    JBT30-8008B3
  • Minimum Order Quantity
    1 unit
  • Price
    Negotiable
  • Packaging Details
    RORO ship, Cargo bulk ship
  • Delivery Time
    7-20 working days
  • Payment Terms
    T/T
  • Supply Ability
    10 units per month

62kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility

Building Machine Concrete Machine Concrete Mixers Concrete Pumps 30m3/H


Product Introduction

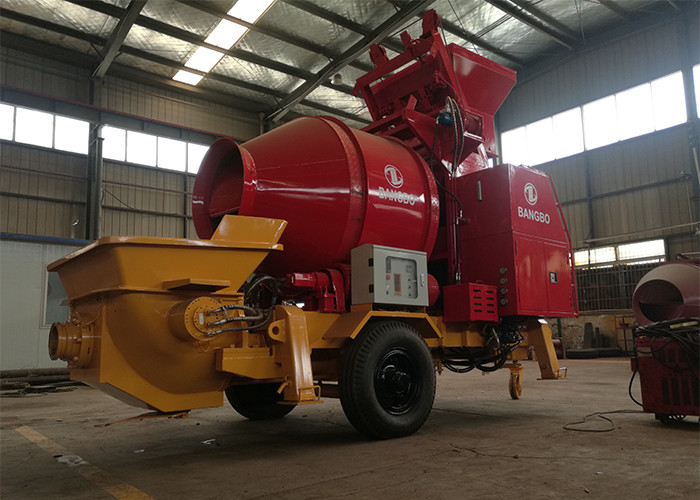

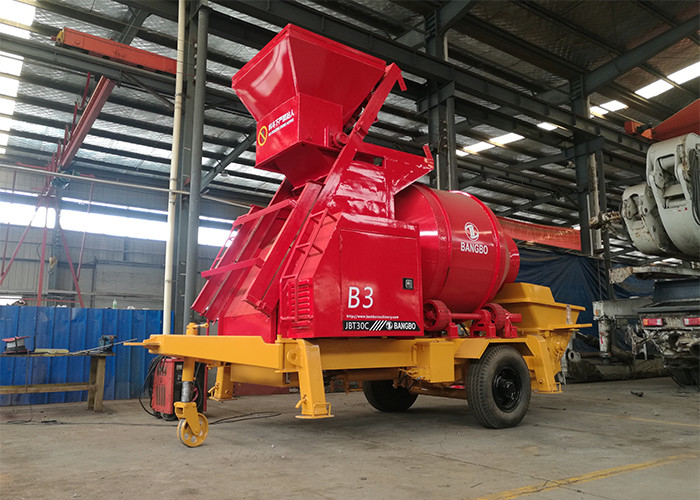

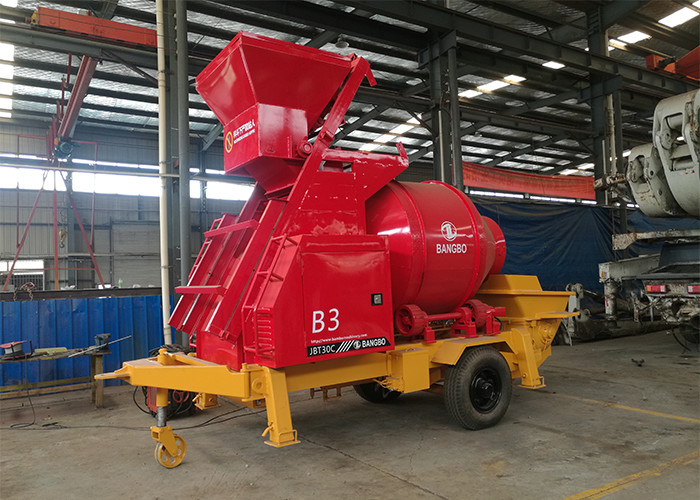

JBT series electric mobile concrete mixer with pump is combines the concrete mixer and concrete pump together, achieving integration of pump station. It is most suitable for the houses and commercial buildings under 10 floors, small bridges, water conservancy, power and communication for which the sites are scattered and on-site mixing is required.



Techincal Parameter of BANGBO Concrete Mixer Pump

Items JBT30 JBT40 DJBT30 DJBT40





Transfer
Pump
Capacity 30m3/h 40m3/h 30m3/h 40m3/h
Pumping pressure 8Mpa 10Mpa 9Mpa 10Mpa
Max. conveyor height 100m 110m 140m 160m
Distribution cylinder The S tube placed valve
Motor power 62kw 62kw 62kw 82kw
Main oil pump capacity 71ml/min 112ml/min 71ml/min 112ml/min
Hopper capacity 550L 550L 550L 550L
Max. aggregate size 20/30mm 30/40mm 20/30mm 20/30mm

Total
Dimension 5100* 2200 *3100mm 5100* 2200 *3100mm
4800x2200x
2800mm
6000x2200x
2800mm
Weight 5100 kg 5100 kg 5500kg 6000kg


62kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility 0

62kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility 162kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility 262kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility 362kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility 462kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility 5






Shipment
1, Usually by sea, sometimes by land, air
2, Standard export packaging by container, which should be applicable to international requirement.
3, Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes.
4, Standard configuration: 1X20HQ for 1 set electric concrete mixer pump.
Payment
We support L/C, T/T, D/P, West Union etc.



62kw 30m3/H Concrete Pump With Mixer Machine , Diesel Concrete Pump High Mobility 6


Q1: What is the capacity of your concrete mixer pump?
A: We have 30m-40m3/h.

Q2: How long and high you want to pump?
A: We can provide 2 floors to 12 floors. Please let us know the vertical and horizontal delivery distance should reach. Or please let me know the tall building's total height.

Q3: The aggregate size that you usually use?
A: Pebble 40mm, crushed stone 30mm.

Q4: How to guarantee customers get the goods smoothly after they pay?
A: We joined the trade assurance. you can place the order by trade assurance,and the deposit will given to Alibaba. if we don't delivery products on time, the deposit will return to you.
